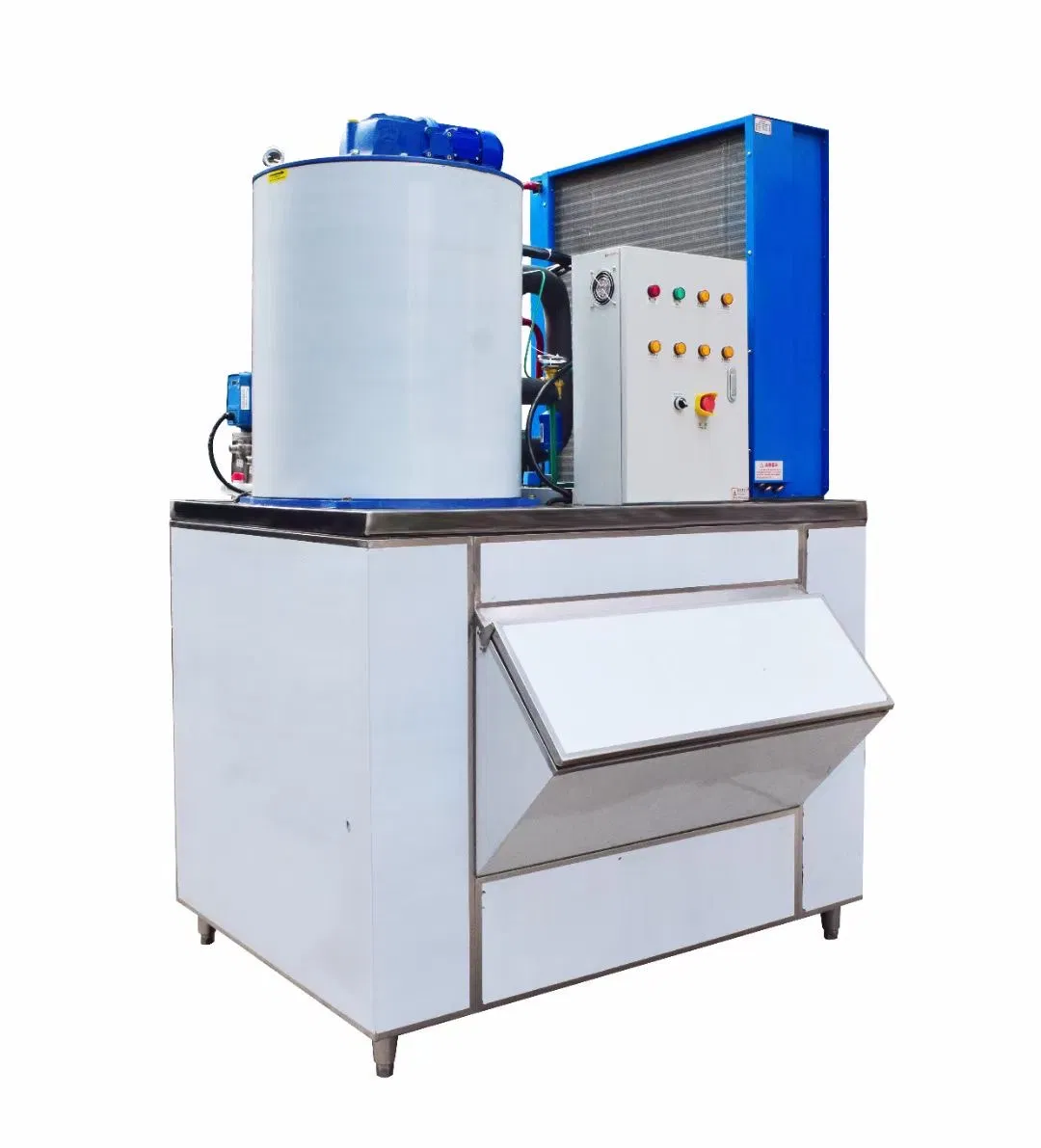

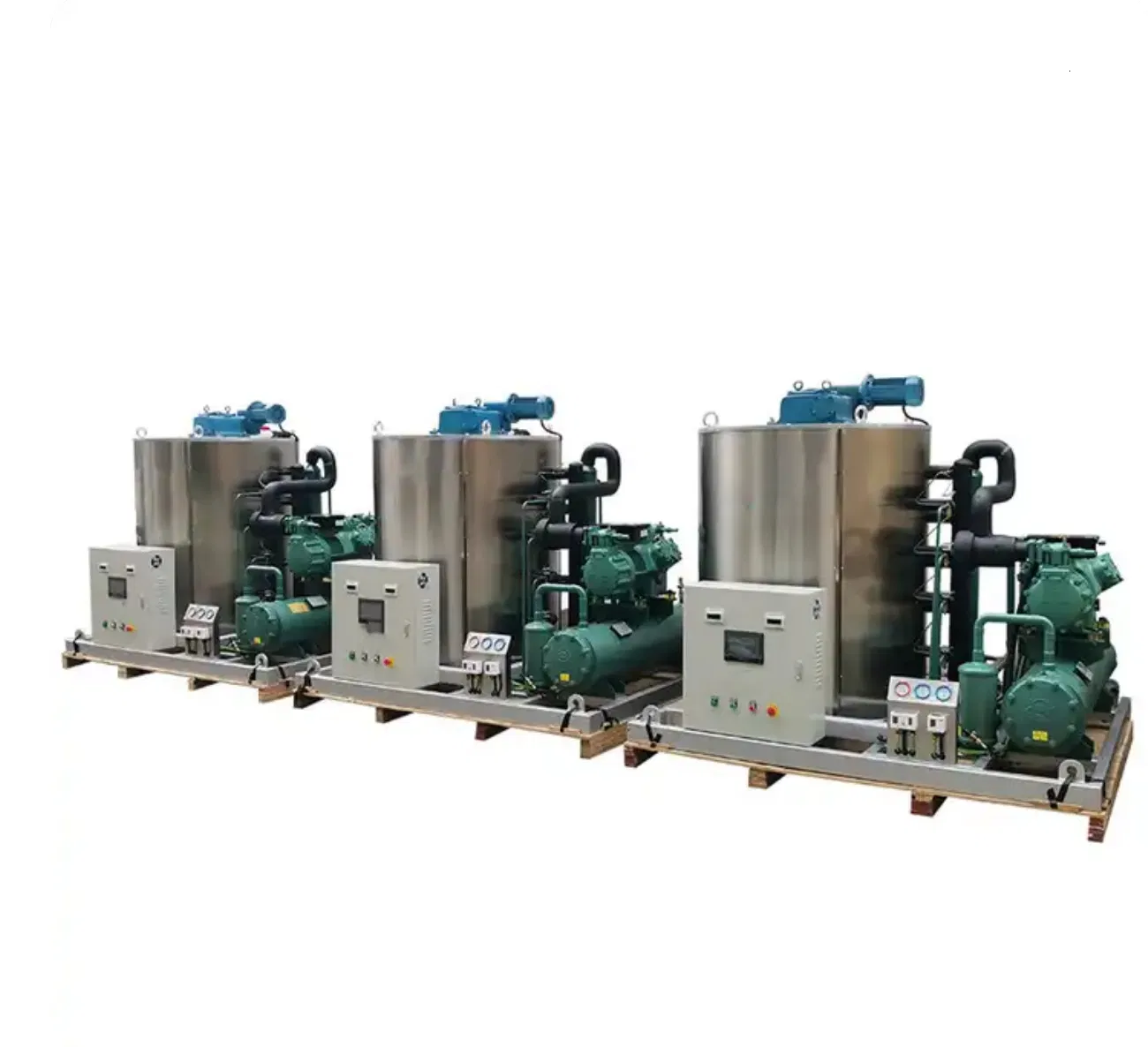

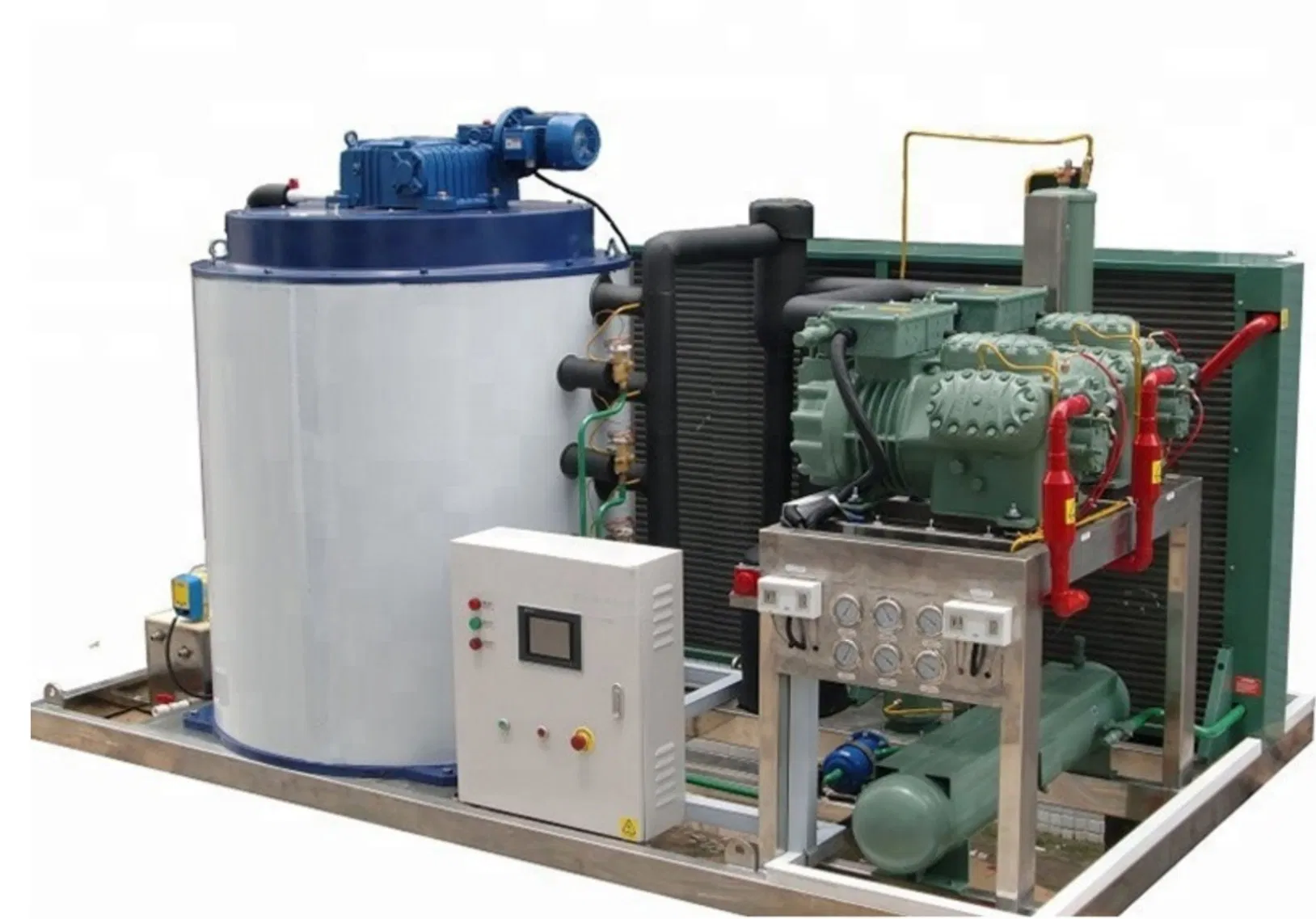

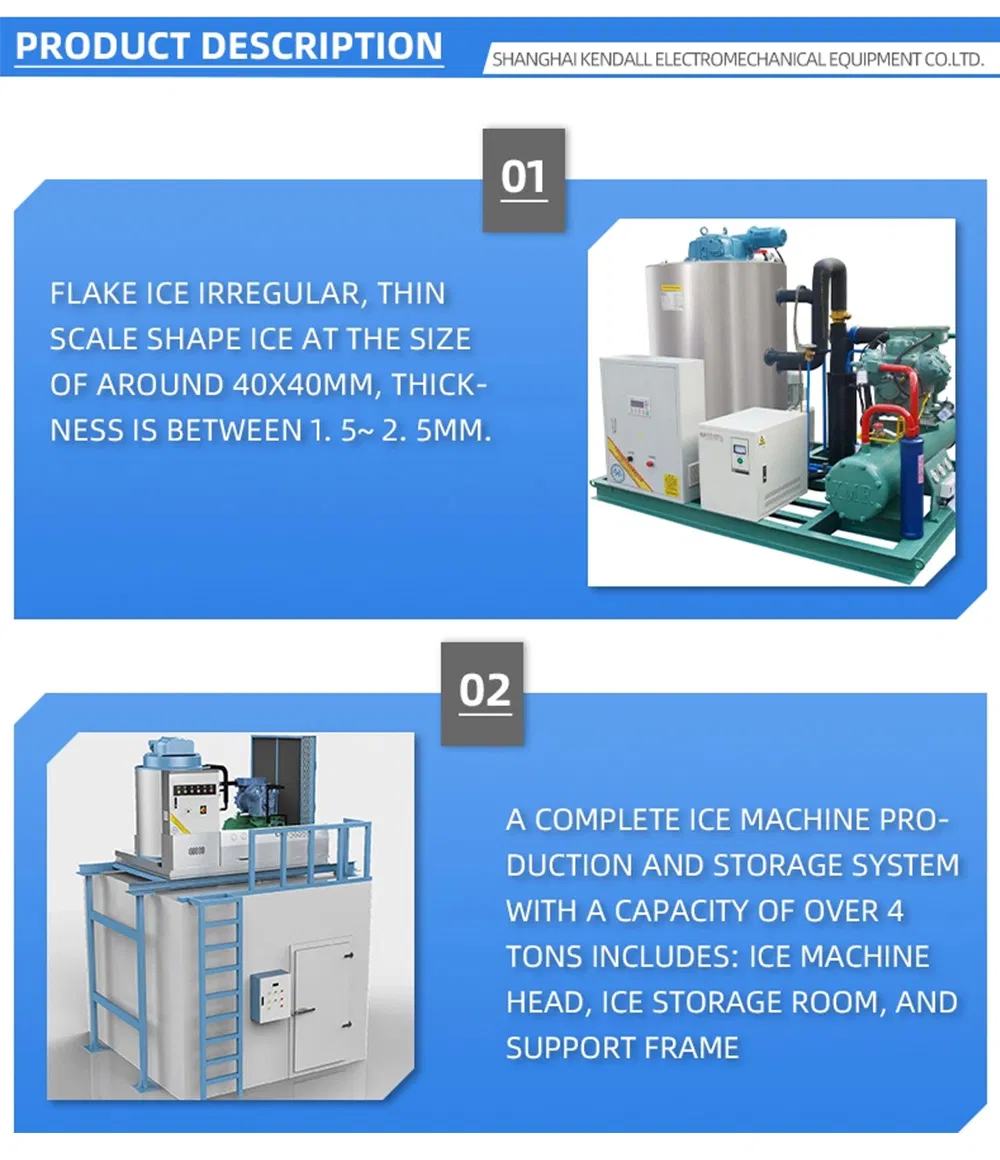

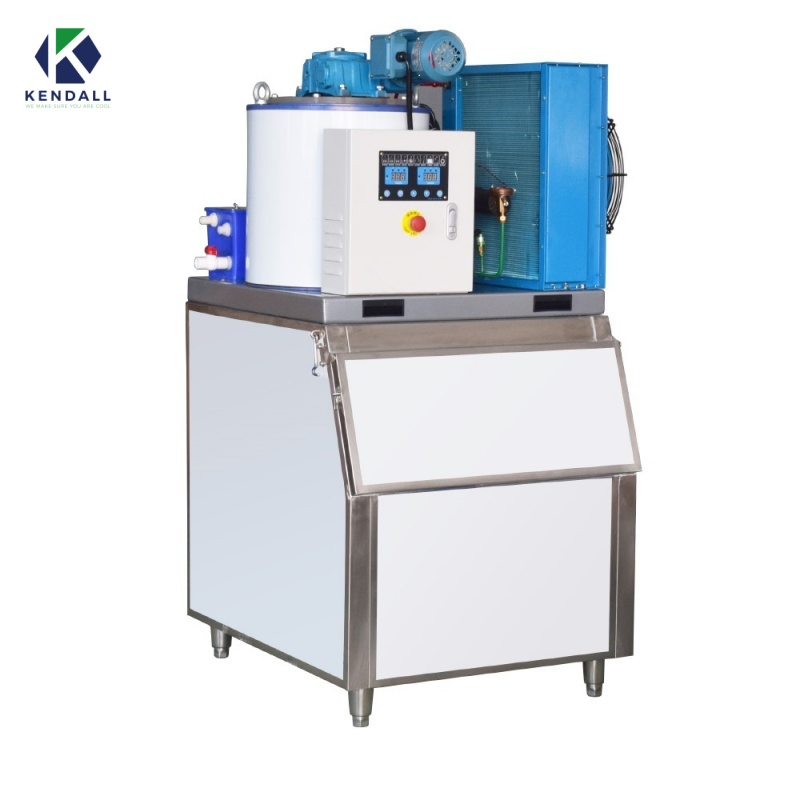

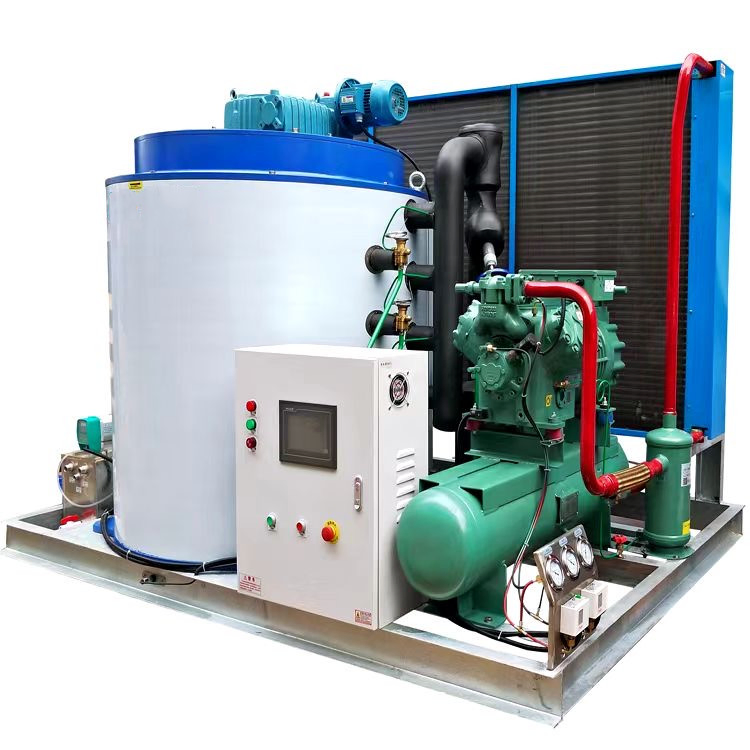

We offer a comprehensive range of flake ice machines for various cooling solutions. Our flake ice makers are delivered worldwide, recognized for high-quality materials and competitive pricing. We provide three primary types: commercial, industrial, and sea water flake ice machines.

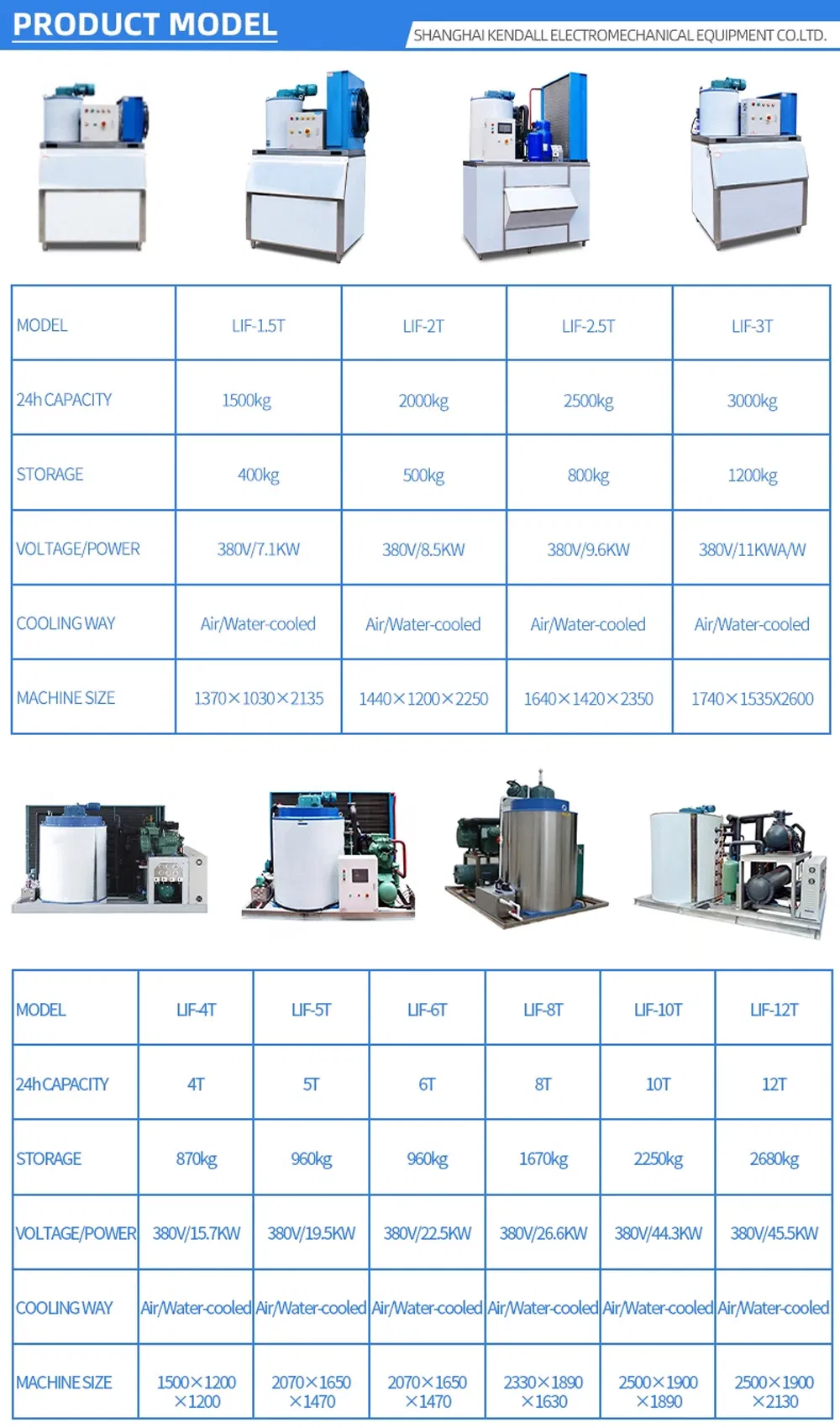

| Product Name | Flake Ice Machine |
|---|---|
| Ice Shape | Flake Ice |
| Voltage | 380V |
| Power Range | 7.1kw - 45.5kw |
| Ice Storage Capacity | 400kg to 2680kg |

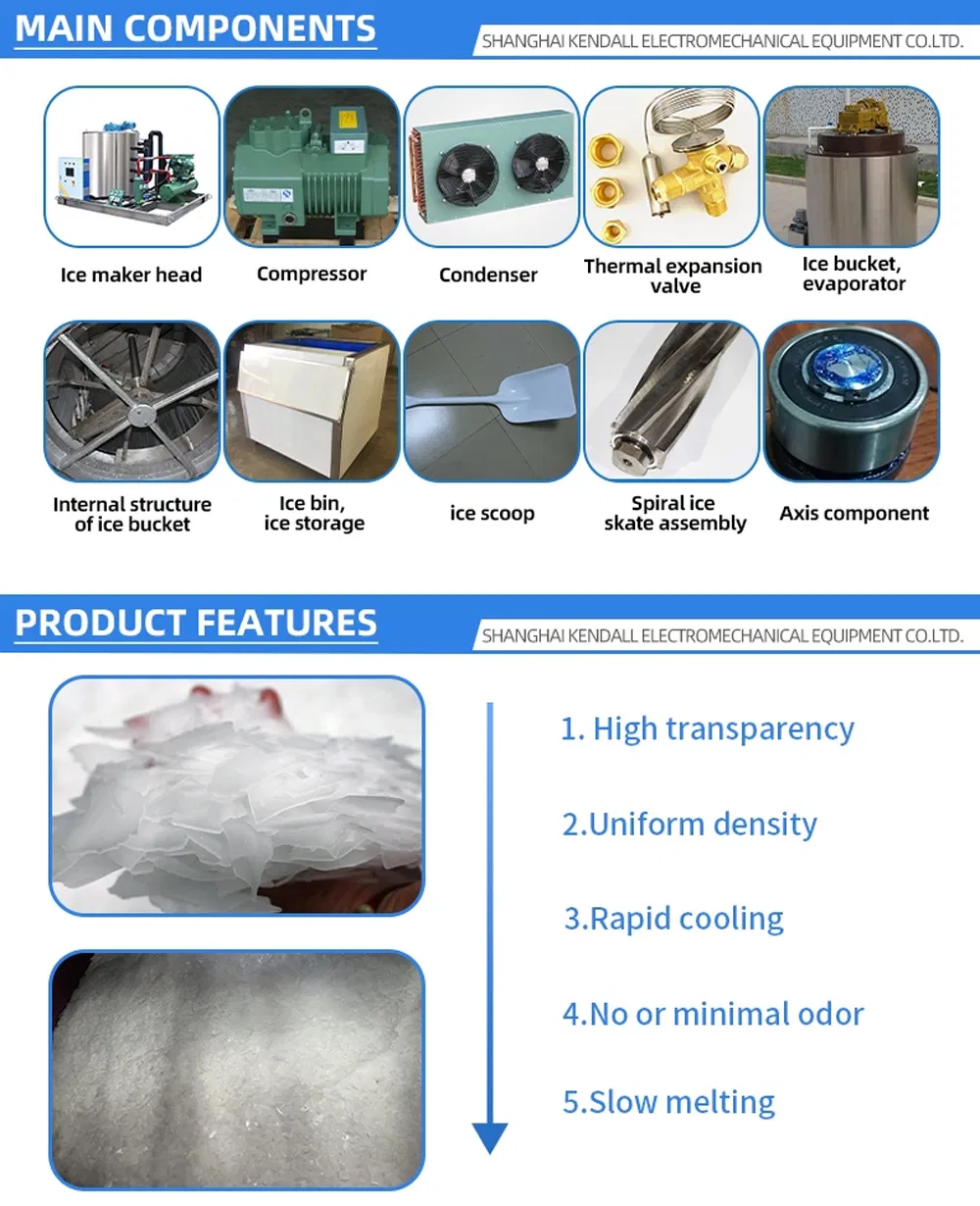

| Core Components | Pressure vessel, Motor, Bearing, Pump, Gearbox, Engine, PLC |
| Cooling Way | Air/Water-cooled |
| Applications | Fish/meat preservation, concrete cooling, etc. |
| No. | Technical Parameter | Specification (KDFI-1T) |
|---|---|---|
| 1 | Theoretical Ice Production | 1000kg/24hr |
| 2 | Actual Ice Production | 950kg/d ~ 1050kg/d |
| 3 | Unit Weight | 227Kg |
| 4 | Overall Dimension | 1100mm × 820mm × 840mm |
| 5 | Ice Thickness | 1.5mm - 2.2mm |
| 6 | Refrigerant | R404A |
| 7 | Evaporation Temperature | -20ºC |
| 8 | Condensation Temperature | 40ºC |
| 9 | Total Installed Power | 4.3KW |
| 10 | Cooling Way | Air-cooling |
With 20 years of expertise in cold storage manufacturing, we are a leading provider dedicated to offering tailored solutions for food preservation, pharmaceutical storage, and cold chain logistics. Our equipment undergoes meticulous design and installation processes to ensure unrivaled reliability.
