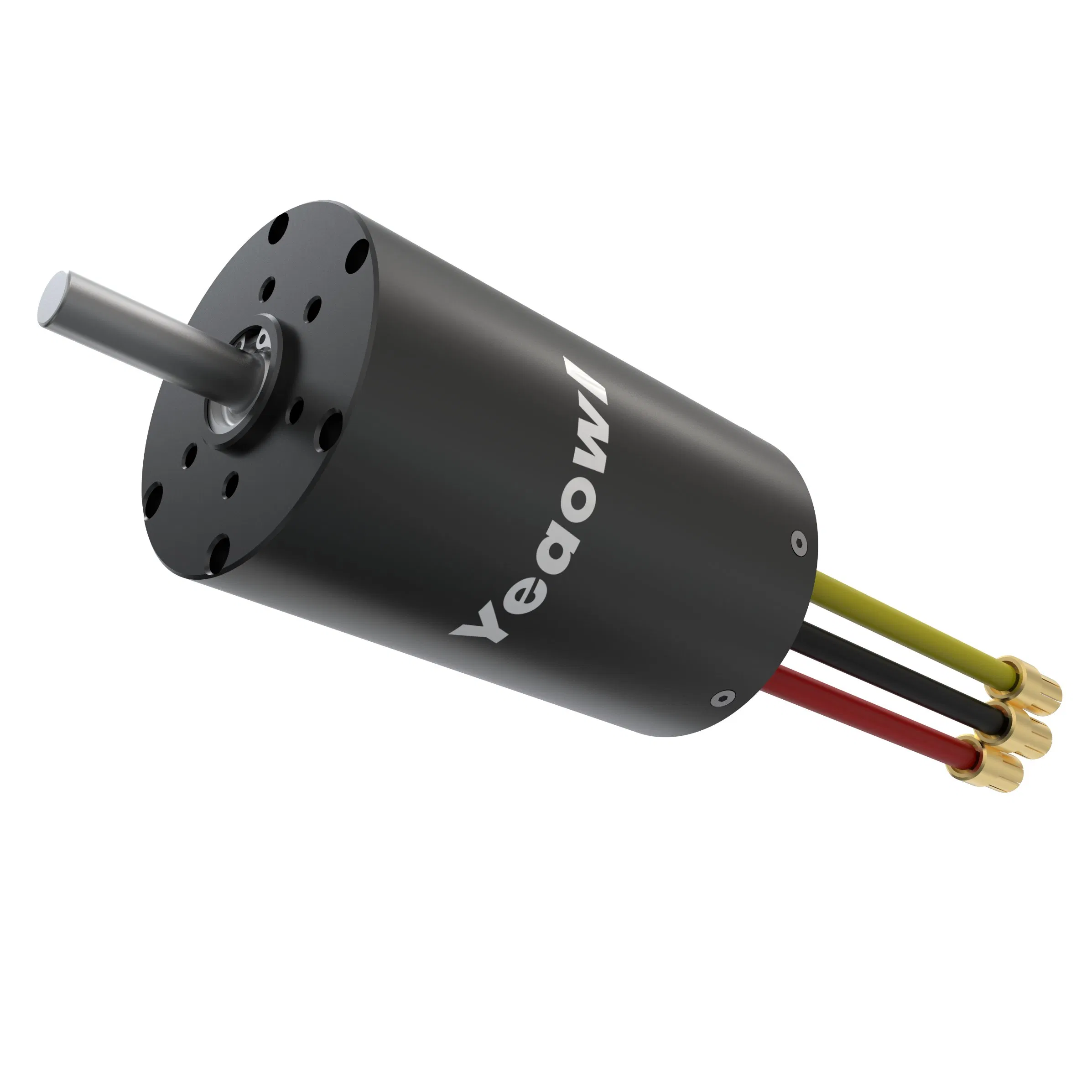

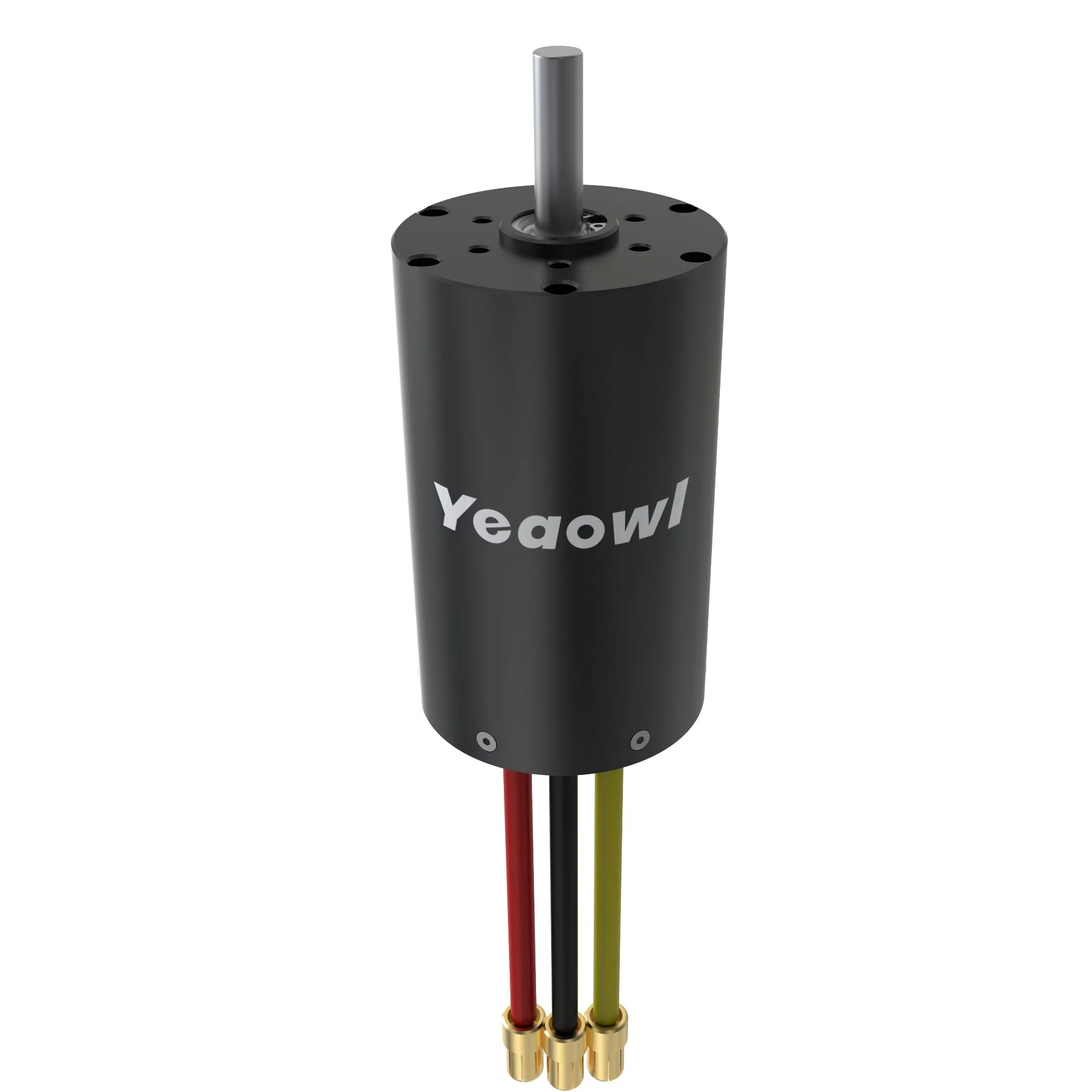

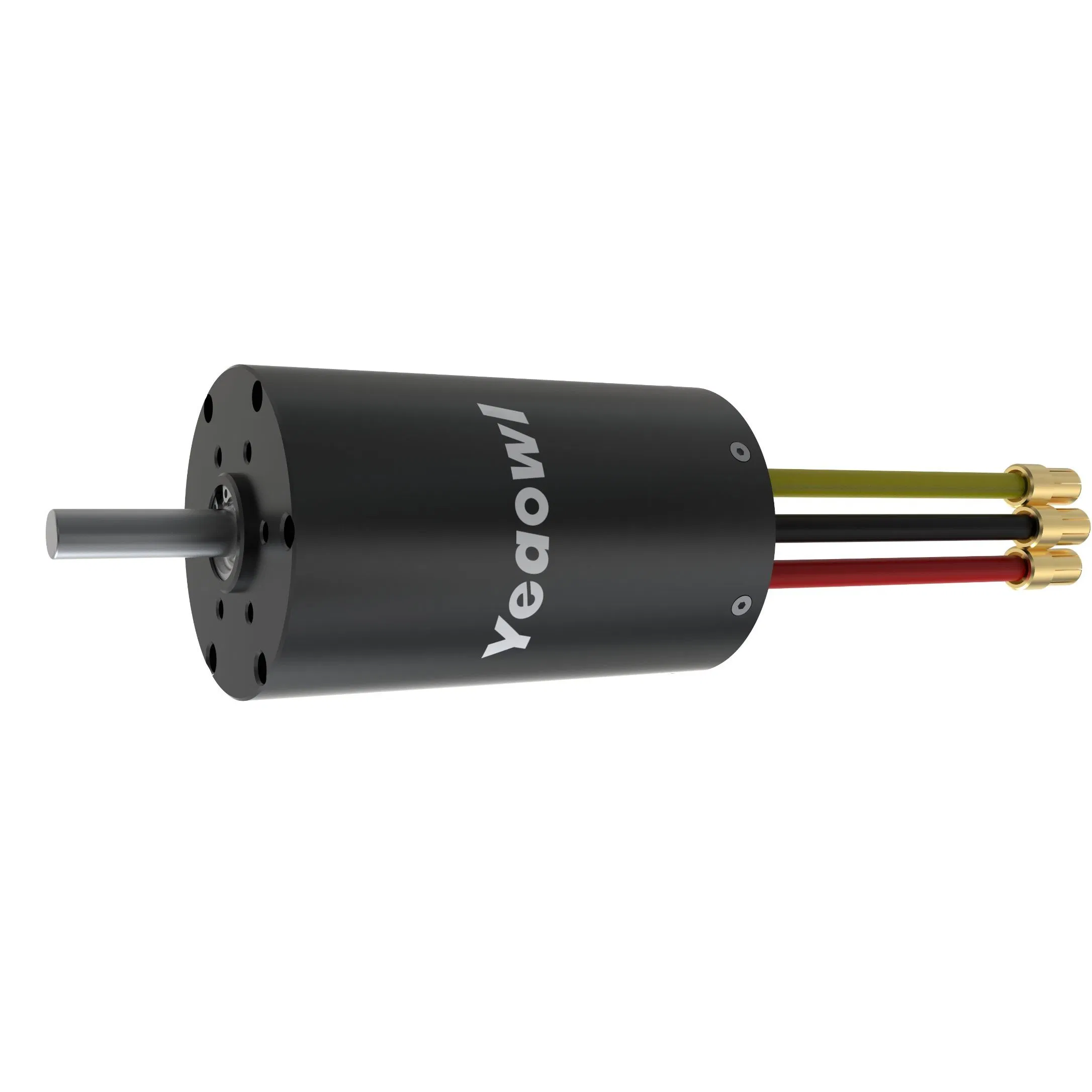

Introducing the High-Speed Surfing Pull Line Winder: Brushless DC Motor
Elevate your surfing experiences with our high-efficiency motor engineered for extreme performance, offering unparalleled speed and reliability.
Product Parameters
🚀
Rated Power: 4000w High Output
🛡️
Protection: IP68 Waterproof Rank available
🔋
Efficiency: Above 92% Energy Efficiency
⏳
Lifespan: Continuous operation above 10,000 hours
| Model No |
T |
KV |
Max Amps |
Max Volt |
Continuous(W) |
Rated Torque |
Max RPM |
Shaft Dia |

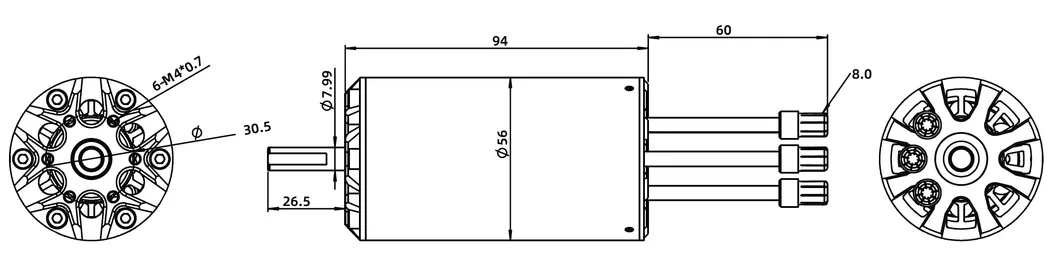

Size(mm) |
Poles |
| 5694 |
3T |
880 |
160A |
56V |
4500 |
0.8 N.M |
48000 |
Φ8.0 |
Φ56*94 |
6P |
| 5694 |
6T |
440 |
84A |
109V |
4500 |
0.9 N.M |
48000 |
Φ8.0 |
Φ56*94 |
6P |
| 5694 |
5Y |
305 |
52A |
158V |
4000 |
0.9 N.M |
48000 |
Φ8.0 |
Φ56*94 |
6P |

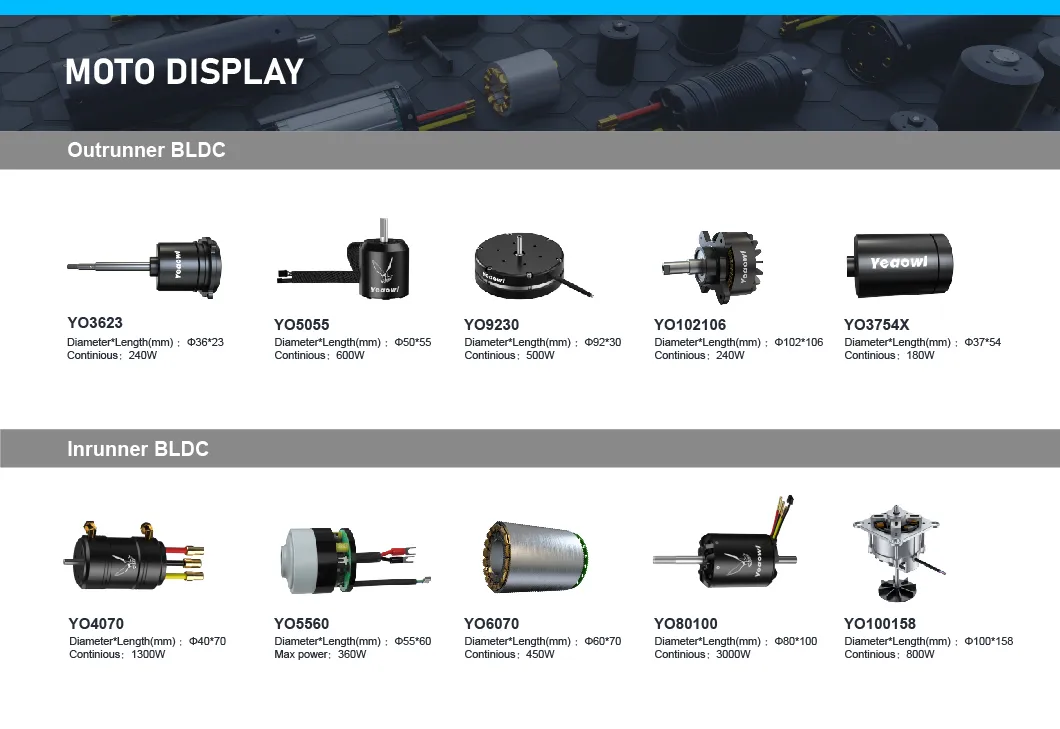

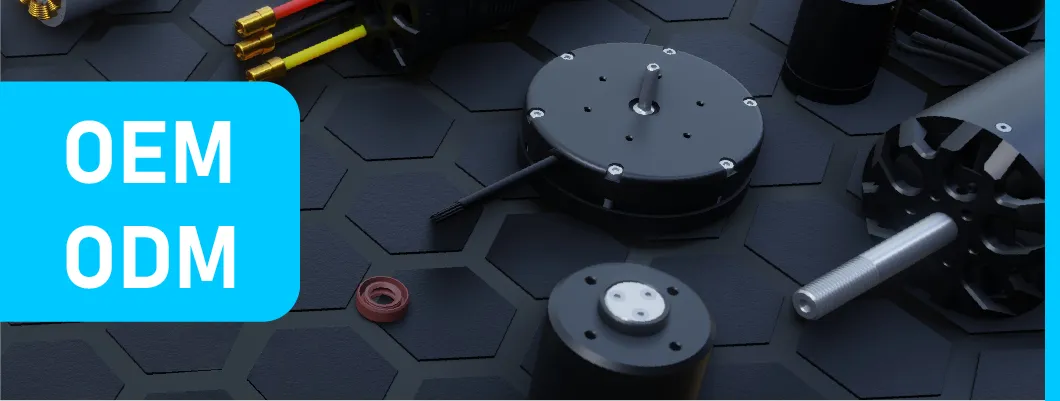

Motor Display & Customization

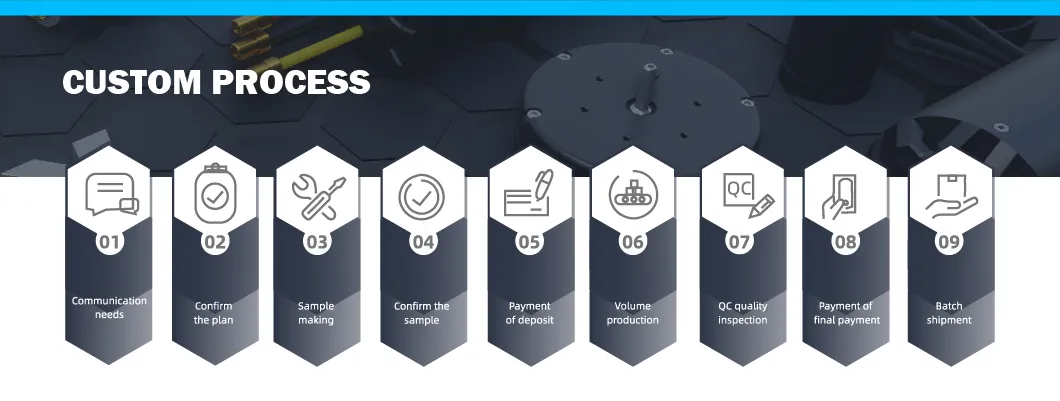

Tailor-Made Solutions: Customize your motor's shape and technical parameters to precisely align with your specific needs. Our expert team excels in crafting brushless motors for research and development projects, fully tailored to your exact specifications.
Our extensive range of brushless DC motors is the perfect choice for a wide array of electric drive applications. We specialize in maximizing power output while adhering to spatial constraints, offering bespoke motor customization including waterproof, dustproof options, and specialized positioning holes.

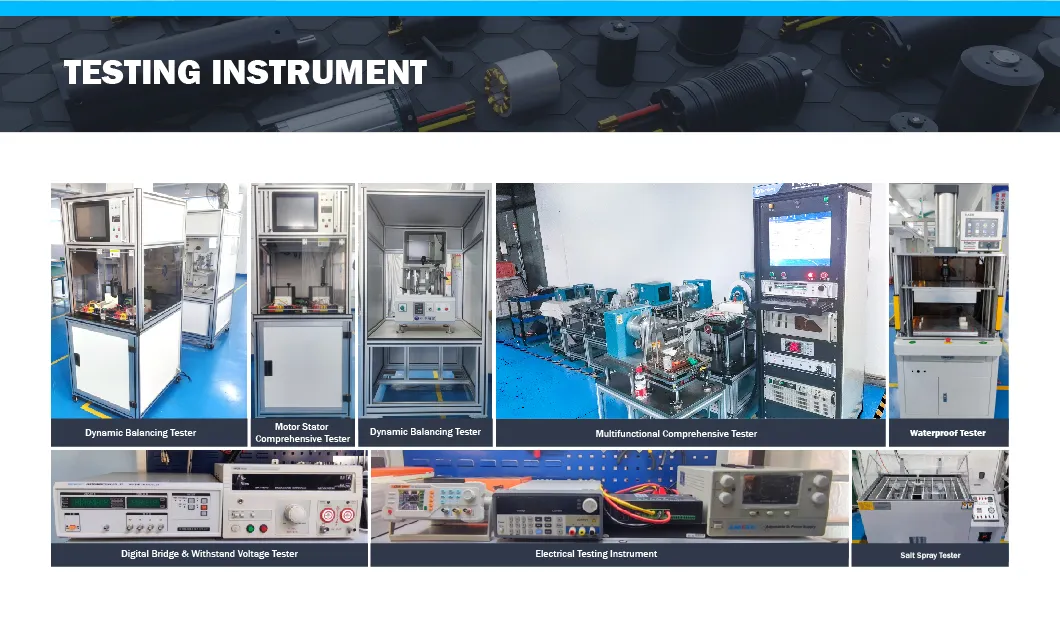

Quality Assurance
Stringent quality control measures utilize professional-grade instruments and equipment to ensure excellence—from initial raw material inspections to final product evaluations. Reliable instrument data guarantees superior product quality.
Frequently Asked Questions
What kind of motors can you provide?
We mainly provide DC permanent magnet motors, DC brushless motors, waterproof motors, BLDC motors, motor drives, and motor controllers, offering comprehensive solutions for electric drive products.
Is there a MOQ for your motors?
Yes. Our minimum order quantity is 100 units or more, but we can accept 1 piece of sample production for testing. Sample pricing may differ from bulk rates depending on the style.
Can the motors be customized?
Absolutely. All motors are customized based on requirements like power, voltage, gear ratio, rated torque, and shaft diameter. We also provide OEM and ODM services.
Are the motors reversible?
Yes, nearly all of our DC motors are reversible. Our technical team can guide you on achieving this function through different wire connections.
What is the delivery time for orders?
For brushless DC motors, sample delivery time is approximately 45-60 days, while bulk production typically takes 50-70 days.
What are your warranty terms?
We offer a standard one-year warranty on our motor products to ensure performance and reliability.
