Basic Specification
Model NO.:JHK100
Cooling Way:Natural
Automation:Automation
Unit Structure:Integral
Machine Size:Large
Ice Temperature:<-78.5℃
Ice Shape:Block
Application Fields:Air Line Catering
Certification:CE
Condition:New
Raw Material:Liquid CO2
Dry Ice Size:125*105*(20-60)mm
Body Material:Stainless Steel 304L
Weight:1200kg
Origin:China
HS Code:8418
Product Description

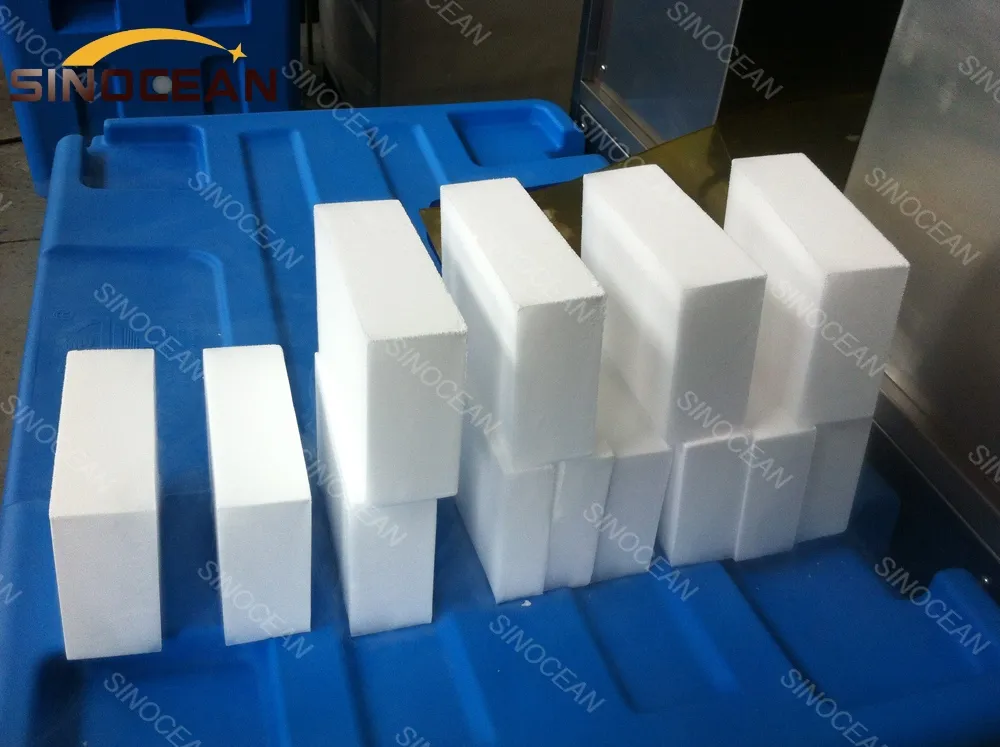

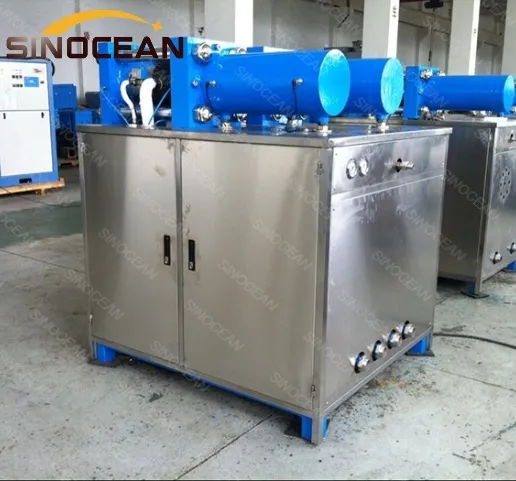

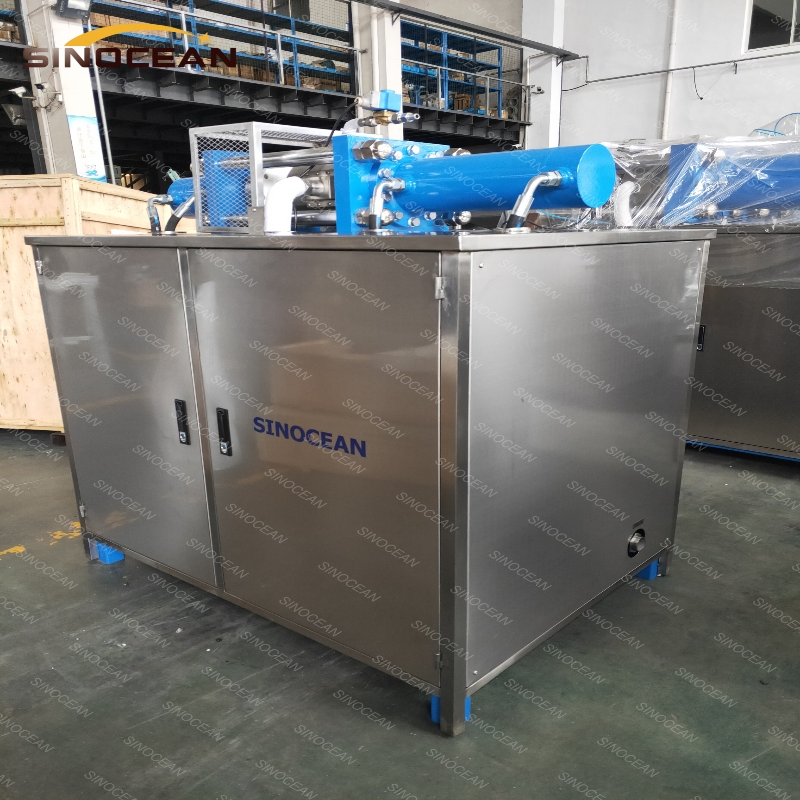

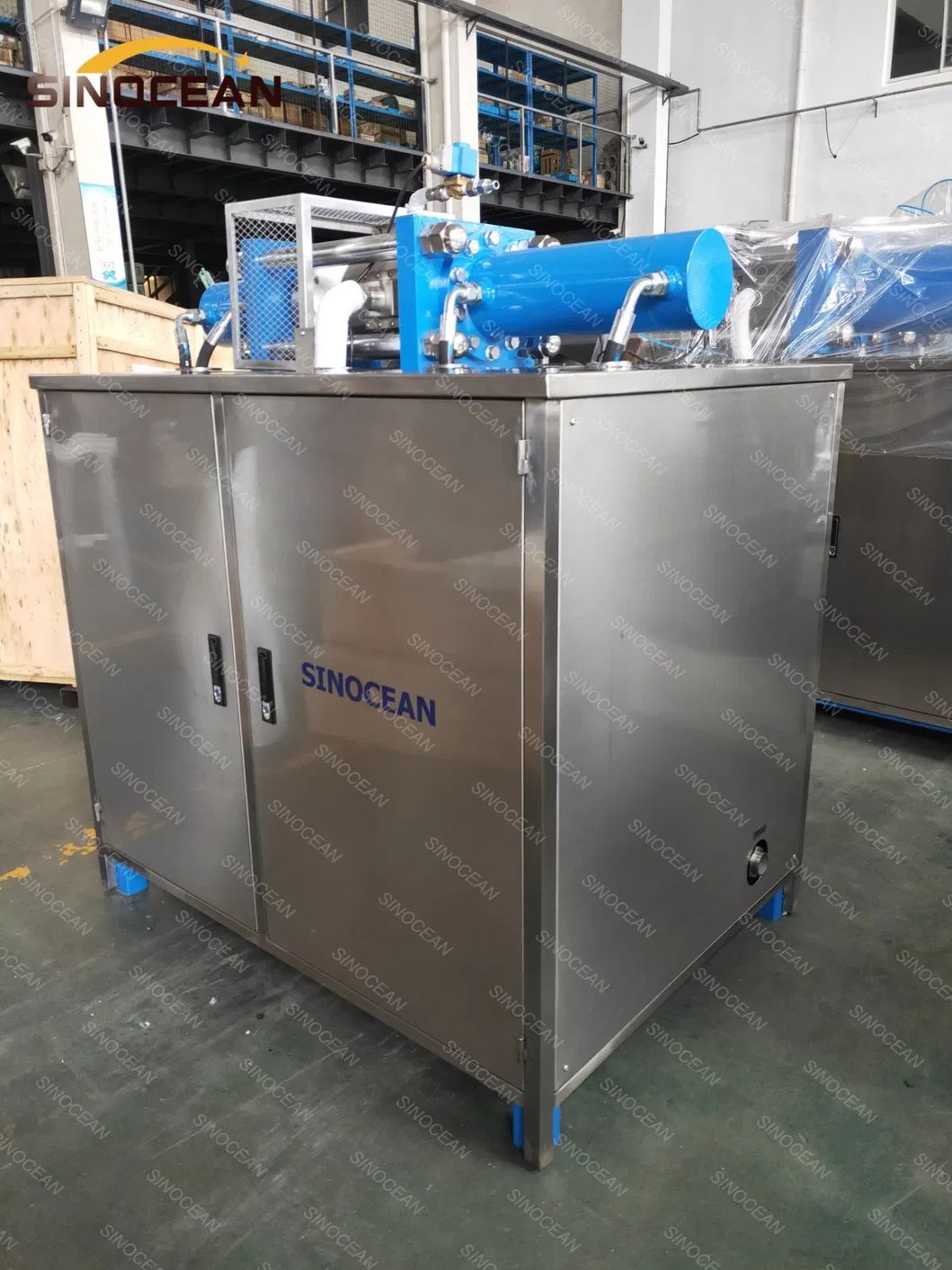

Our standard dry ice block machine JHK100 is producing a dry ice slice with a dimension of 125 x 105 x 25 mm which is normally used for airline catering. It is also possible to produce other thicknesses up to 60 mm by manual adjustment of the snow injection time. Other slice dimensions are available on request.
Specifications
| Model No. | JHK100 |
| Dry Ice Size | 125*105*(20-60)mm |
| Production Capacity | 120-185kgs/hr |
| Dry Ice Density | ≥1.48 g/cm³ |
| Raw Materials | Liquid CO2 (water content < 30ppm) |
| Conversion Rate | 42% |
| Motor Power | 7.5kw |
| Oil Tank | 280L |
| Power Supply | 380v/50Hz, 3p |
| Inlet Pressure | ≤2.1MPA |
| Overall Dimension | 1400*1100*1700mm |
| Weight | 1200kg |
Unique Features
⚙️
PLC Control
Automatically controls the complete process, including injection and hydraulic systems.
⚖️
Independent Performance
Constant production that remains independent of pressure and temperature variations.
📊
Integrated Production Control
Allows for precise definition and supervision of production quantities.
🛡️
High Process Reliability
Optimized monitoring provides maximum performance and increases system reliability.
🔧
Easy Maintenance
Simple structure and easy replacement of spare parts make it user-friendly for maintenance.
📐
Compact Design
Requires minimum floor space while delivering high production performance.
Why Choose Us?
- 🚀 Innovative Technology: Backed by numerous patents, ensuring cutting-edge performance.
- 📈 Experience and Growth: Over a decade in business, with established subsidiaries for stability.
- 🌍 Global Presence: Partnerships with multiple overseas agencies for widespread reach.
- 🛠️ Customization: We offer OEM/ODM services to meet diverse customer needs.
- ⚡ Rapid Support: Swift global technology support and efficient shipping services.
- 🌱 Eco-Friendly: We employ energy-saving and environmentally friendly technologies.
Application Industry
Food & Beverage: Refrigeration during transport and fog effects.
Healthcare: Cold chain logistics for vaccines and biological samples.
Industrial Cleaning: Dry ice blasting for machinery maintenance.
Aerospace & Automotive: Chemical-free removal of contaminants and paint.
Entertainment: Theatrical fog effects for events.
Metalworking: Used in specialized shrink fitting processes.
Frequently Asked Questions
What products do you offer?
We offer Tube/Block/Flake/Plate Ice Machines, Dry Ice Pelletizers, Block/Blasting Machines, and CO2 recovery plants.
What industries do your products serve?
Dry ice blocks are primarily used for food preservation, healthcare cold chain logistics, industrial cleaning, and transportation cooling.
Can you customize products?
Yes, we accept OEM and ODM orders to meet your specific technical requirements and dimensions.
What are the payment terms?
Typically, we require a 30% deposit before production and 70% balance before loading. T/T and L/C at sight are acceptable.
How do you ensure product quality?
We conduct rigorous inspections at every stage of production and adhere to international standards for all finished equipment.
How are goods delivered?
Delivery is arranged via sea or land freight based on your specific location and requirements, ensuring export-standard packing.
