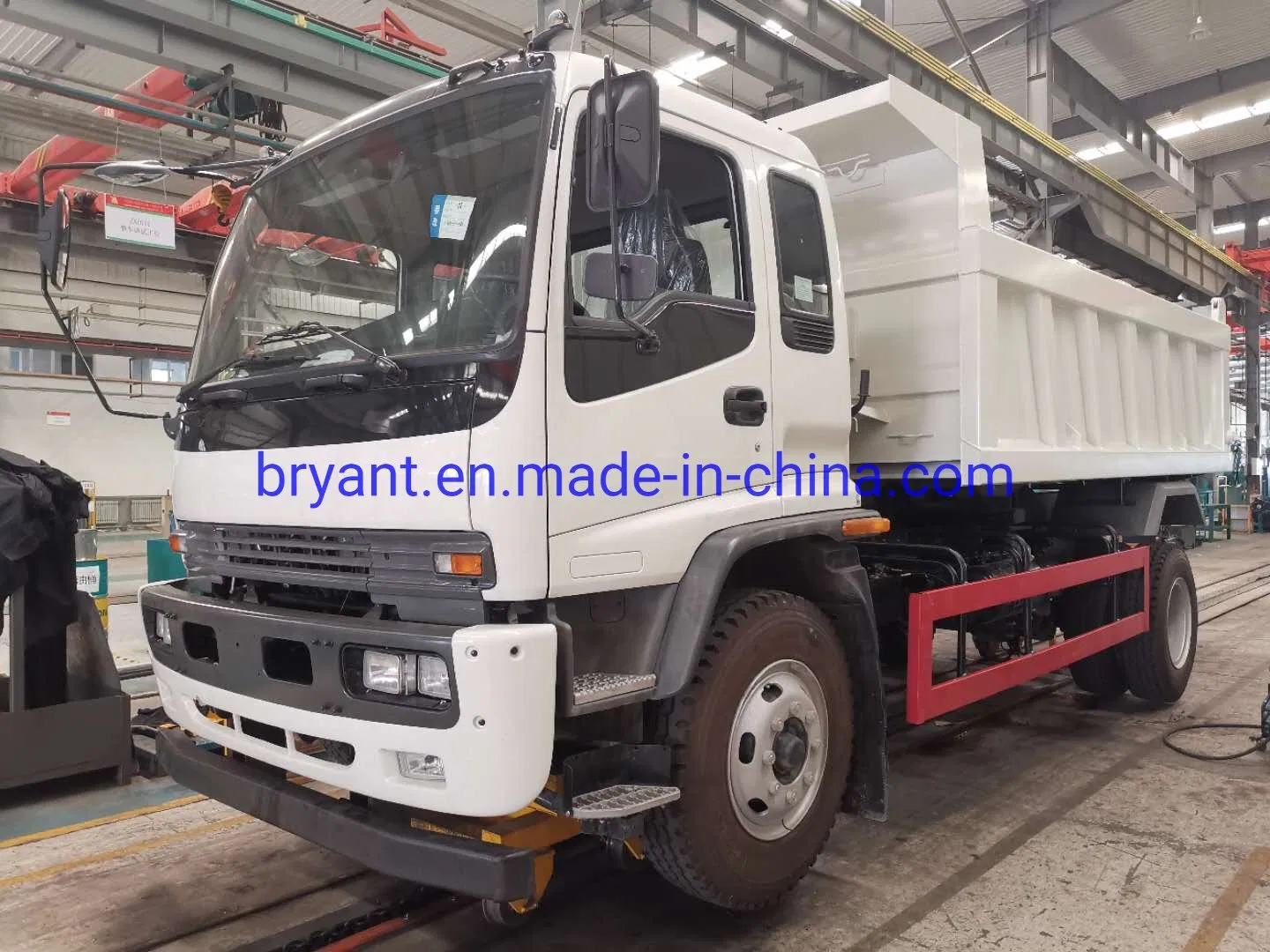

China Isuzu Ftr Dump Truck with 10 Cmb Dump Box Isuzu Ftr Fvr 4HK1 6HK1 Engine Japan 10tons 12tons 14tons Dump Truck Tipper Truck

1 / 5

China Isuzu Ftr Dump Truck with 10 Cmb Dump Box Isuzu Ftr Fvr 4HK1 6HK1 Engine Japan 10tons 12tons 14tons Dump Truck Tipper Truck

Customization:	Available
Transmission Type:	Manual
Power:	Diesel

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.ISUZU QINGLING

Load Capacity1-10t

Emission StandardEuro 5

Drive Wheel4×2

Engine Capacity4-6L

Seats≤5

Horsepower150-250hp

Tire CertificationECE, GCC, ISO, DOT

Dumping TypeFront Lifting Style

ConditionNew

BrandIsuzu Ftr Truck

Loading10 Ton

Volume10 Cbm

OriginChina

🚚

Product Description

CHINA ISUZU FTR SERIES DUMP TRUCK IS UNIVERSAL WITH JAPAN ISUZU F SERIES TRUCK AND TOTALLY COMPATIBLE WITH JANPAN ISUZU SERIES IN BOTH SPARE PARTS AND AFTER SALES SERVICE, MORE COMPETITIVE PRICE AND EXCELLENT PERFORMANCE.

📸

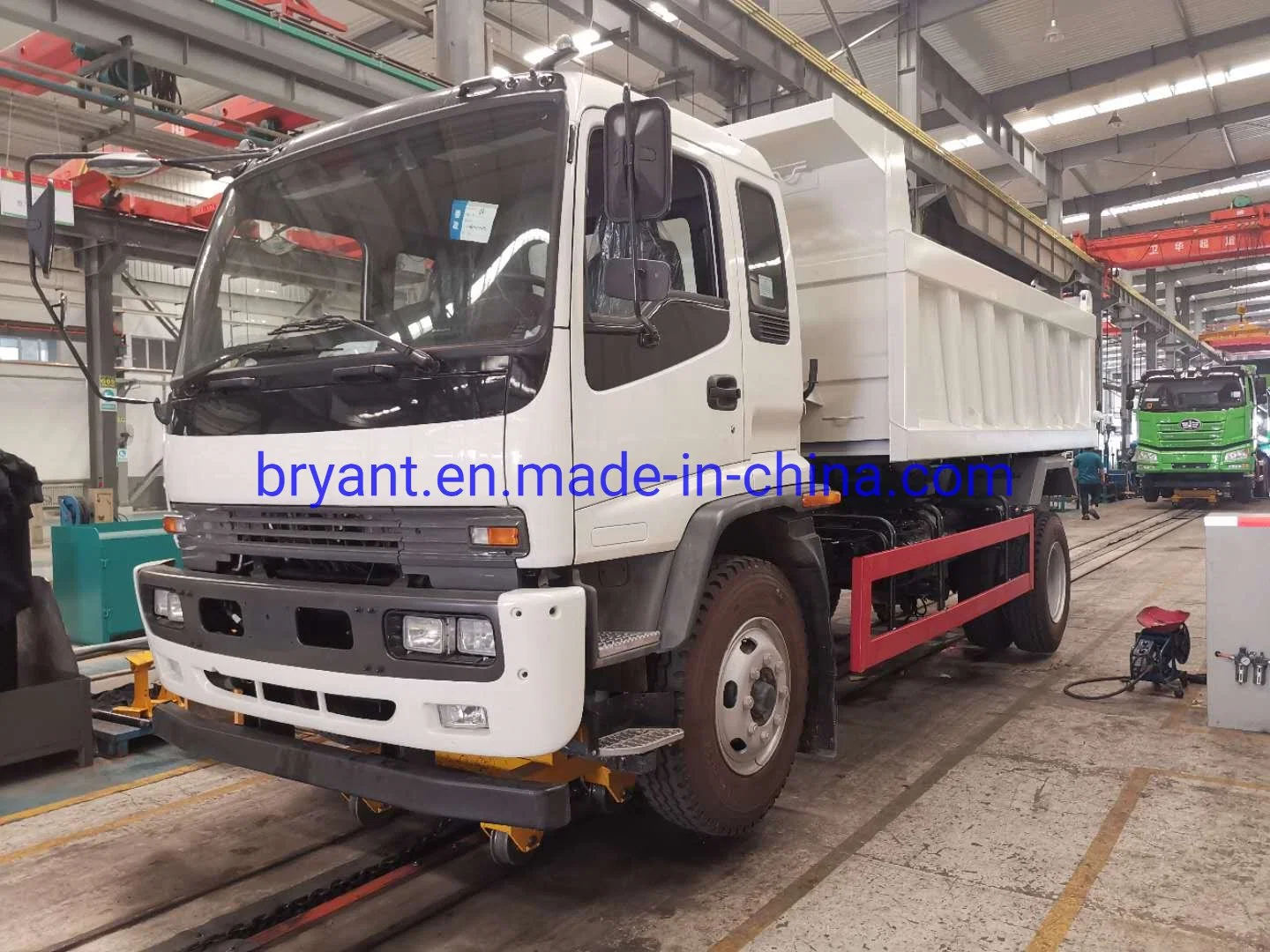

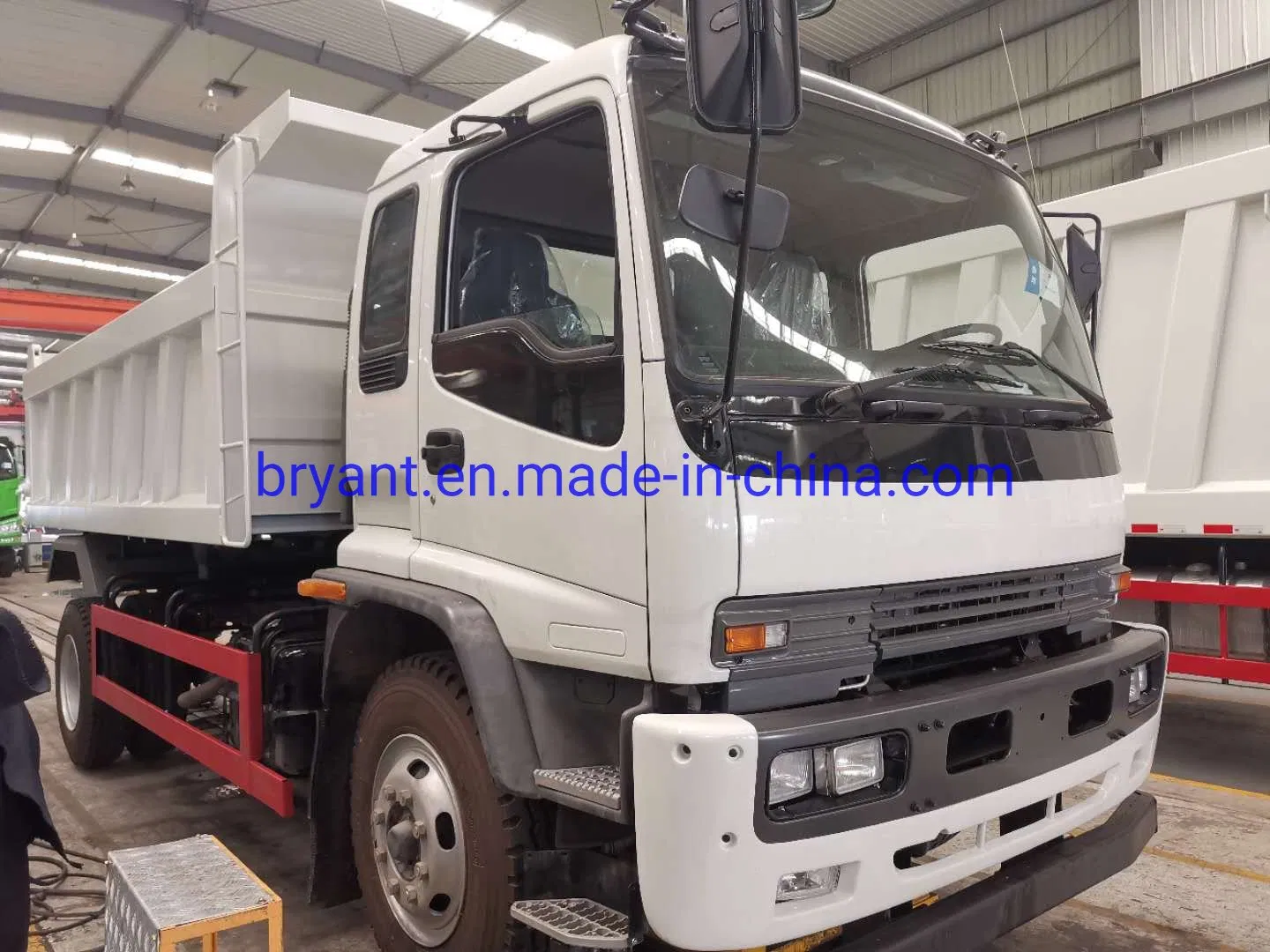

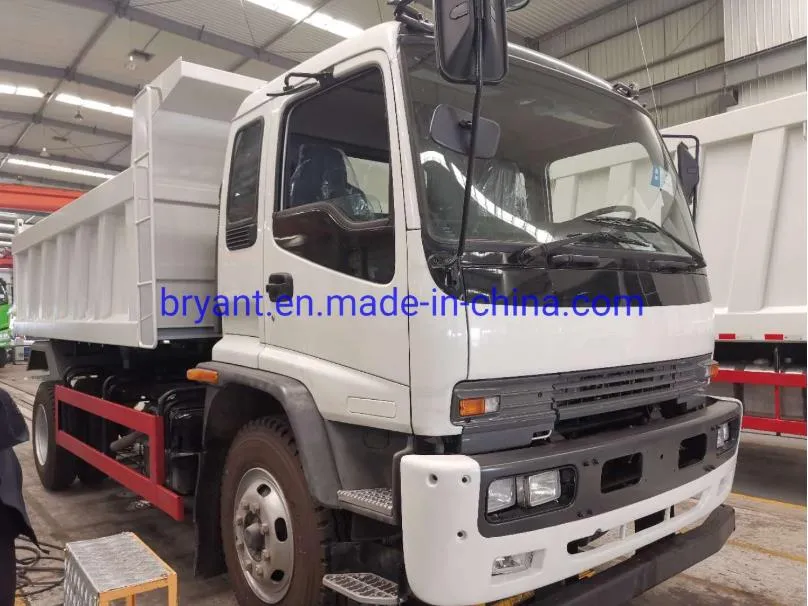

1. TRUCK EXTERIOR

💺

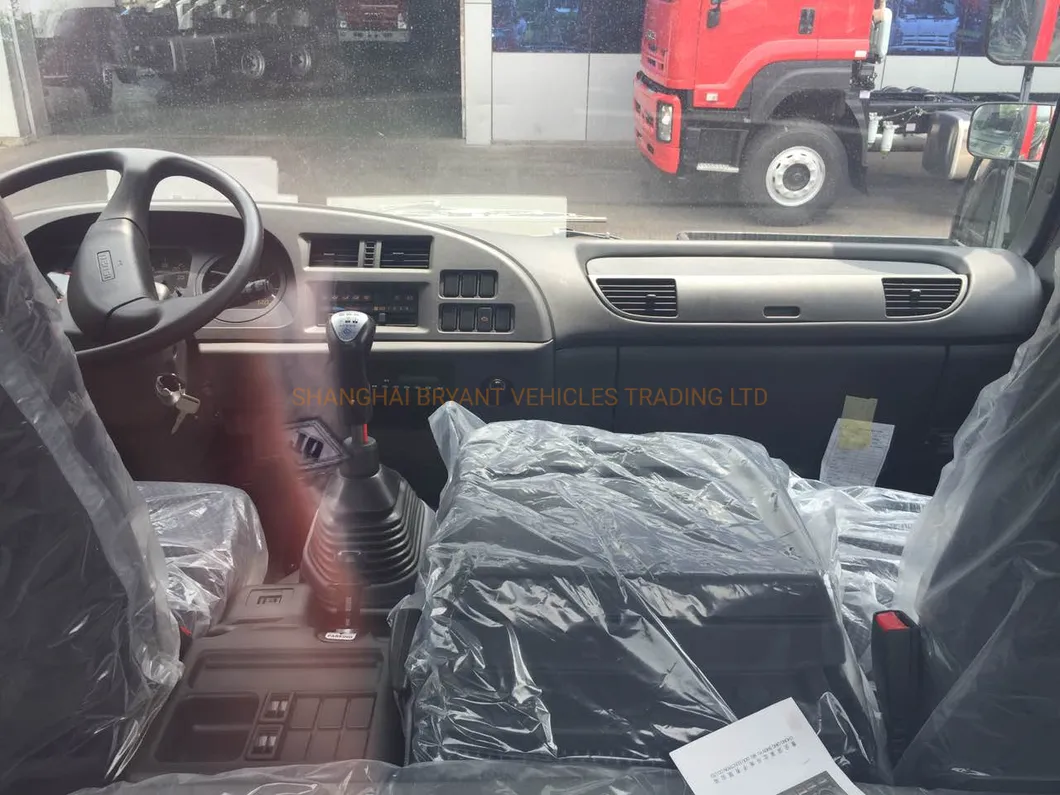

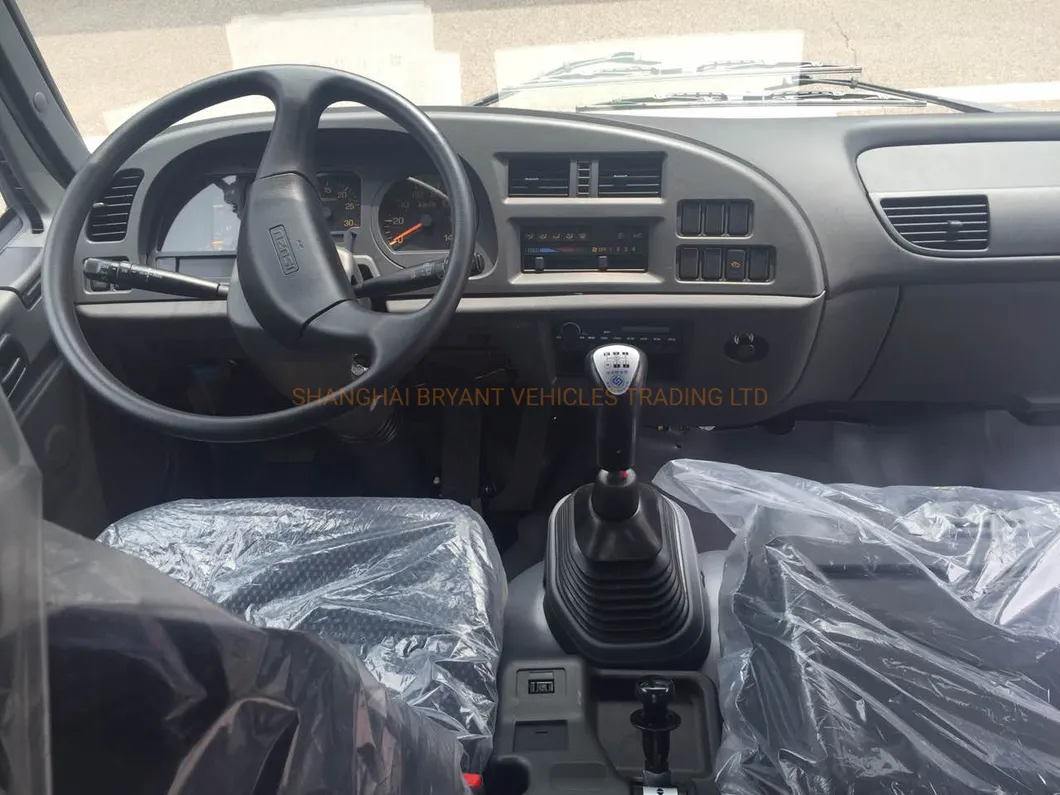

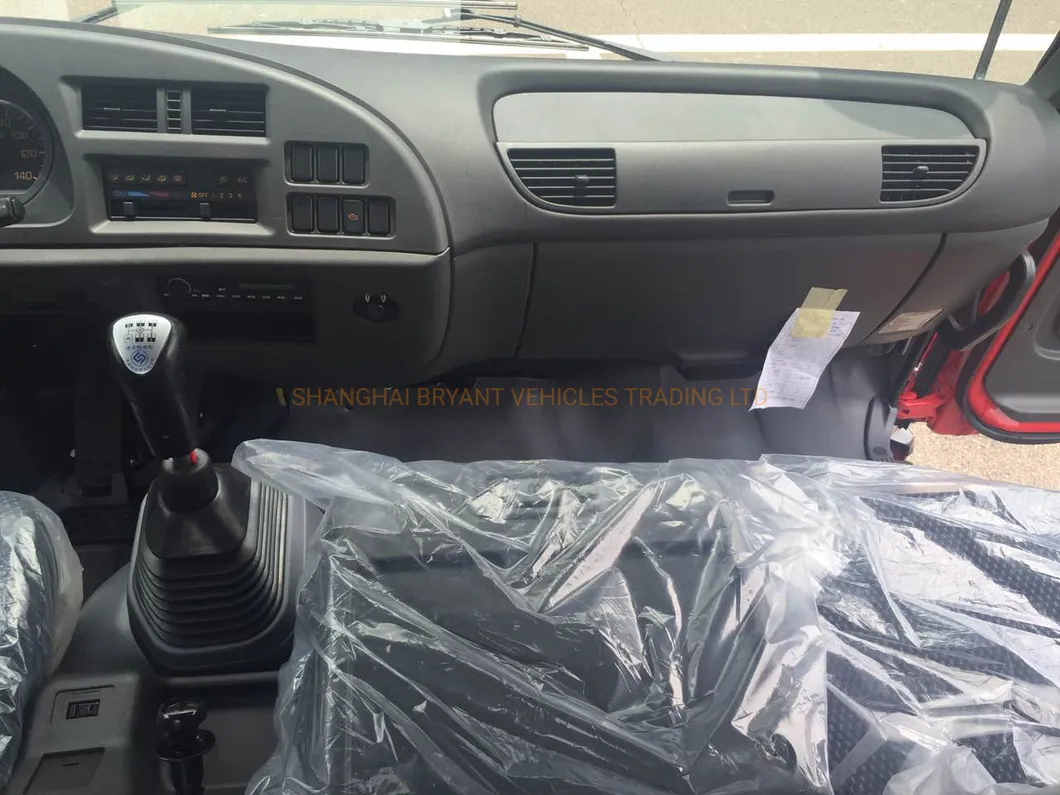

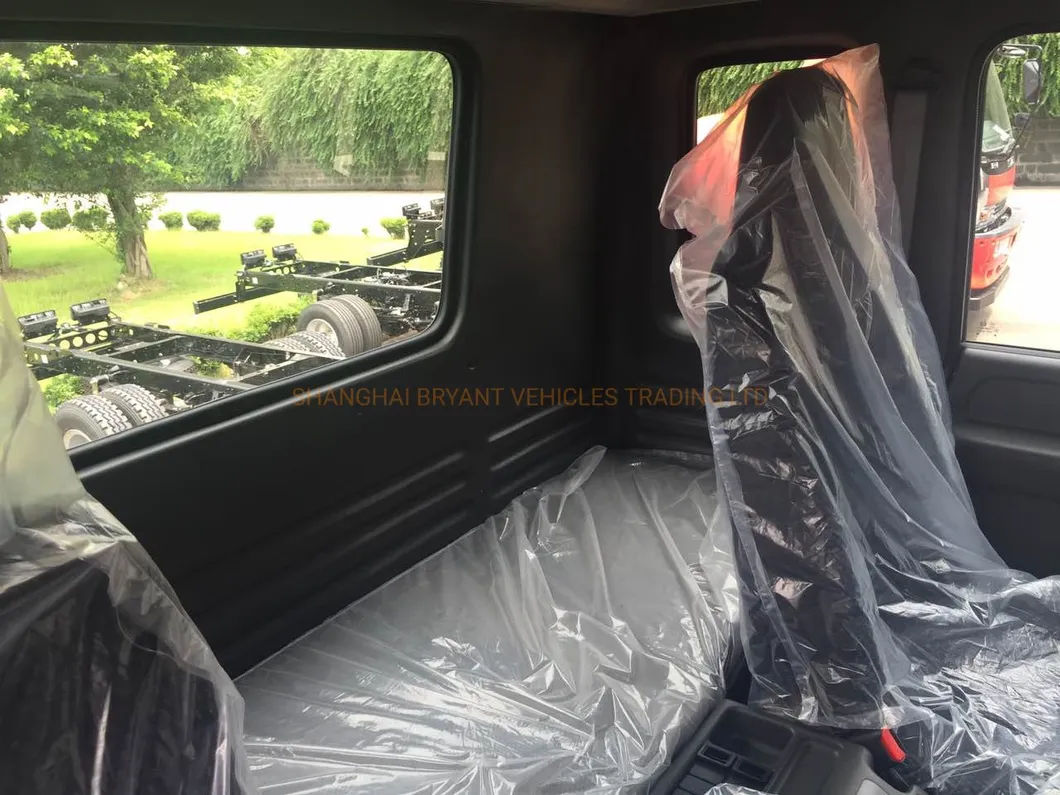

2. CABIN INTERIOR

⚙️

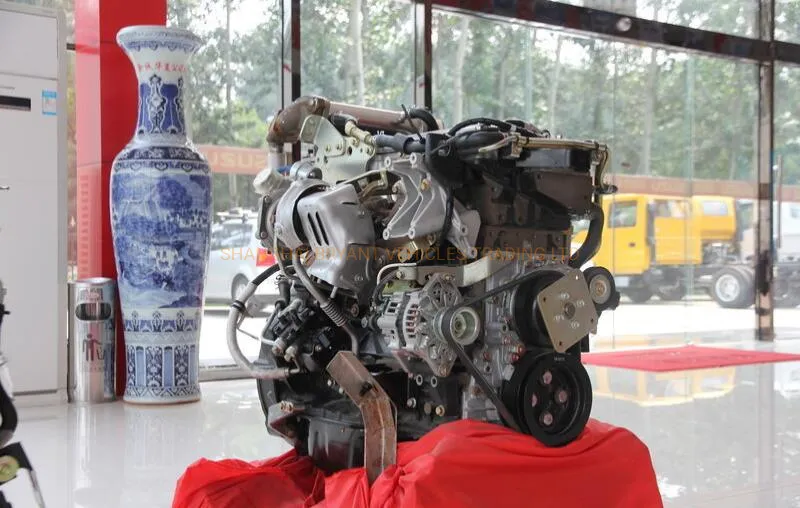

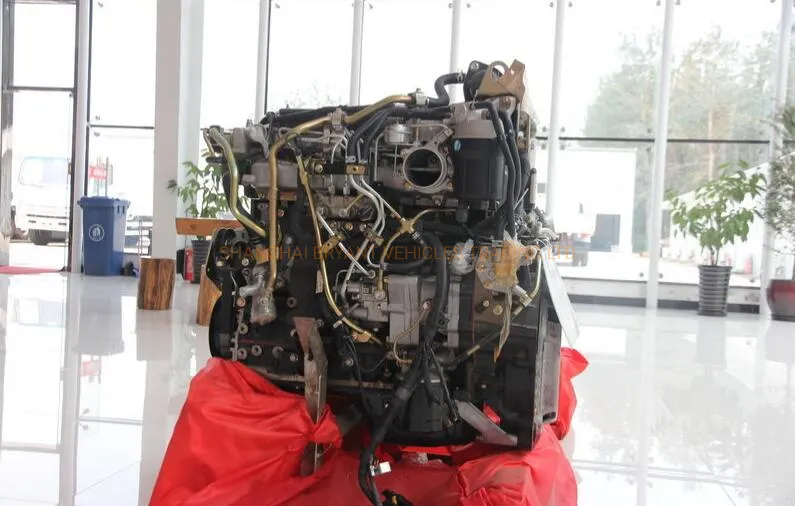

3. ENGINE DETAILS

📊

Key Parameters

Category		Specifications
Dimensions	Length / Width / Height (mm)	7710 / 2465 / 3100
	Wheel Base (mm)	4500
	Curb Weight / GVW (kg)	6000 / 16000
	Max Loading Capacity (kg)	10000
Performance	Max Speed / Grade Ability	95 km/h / 30%
Performance	Min Ground Clearance (mm)	314
Engine (Euro V)	Model	4HK1-TC50
	Rated Power	205HP / 151KW
	Type	4-cylinder in-line, turbo-charging, intercooling
Transmission	Model & Type	ISUZU MLD-6Q / Manual / 6F & 1R
Axle & Brake	Axle Load (F/R)	6000kg / 10000kg
Tire & Tank	Tire Size / Fuel Tank	10.00R20 / 200L Aluminium Alloy

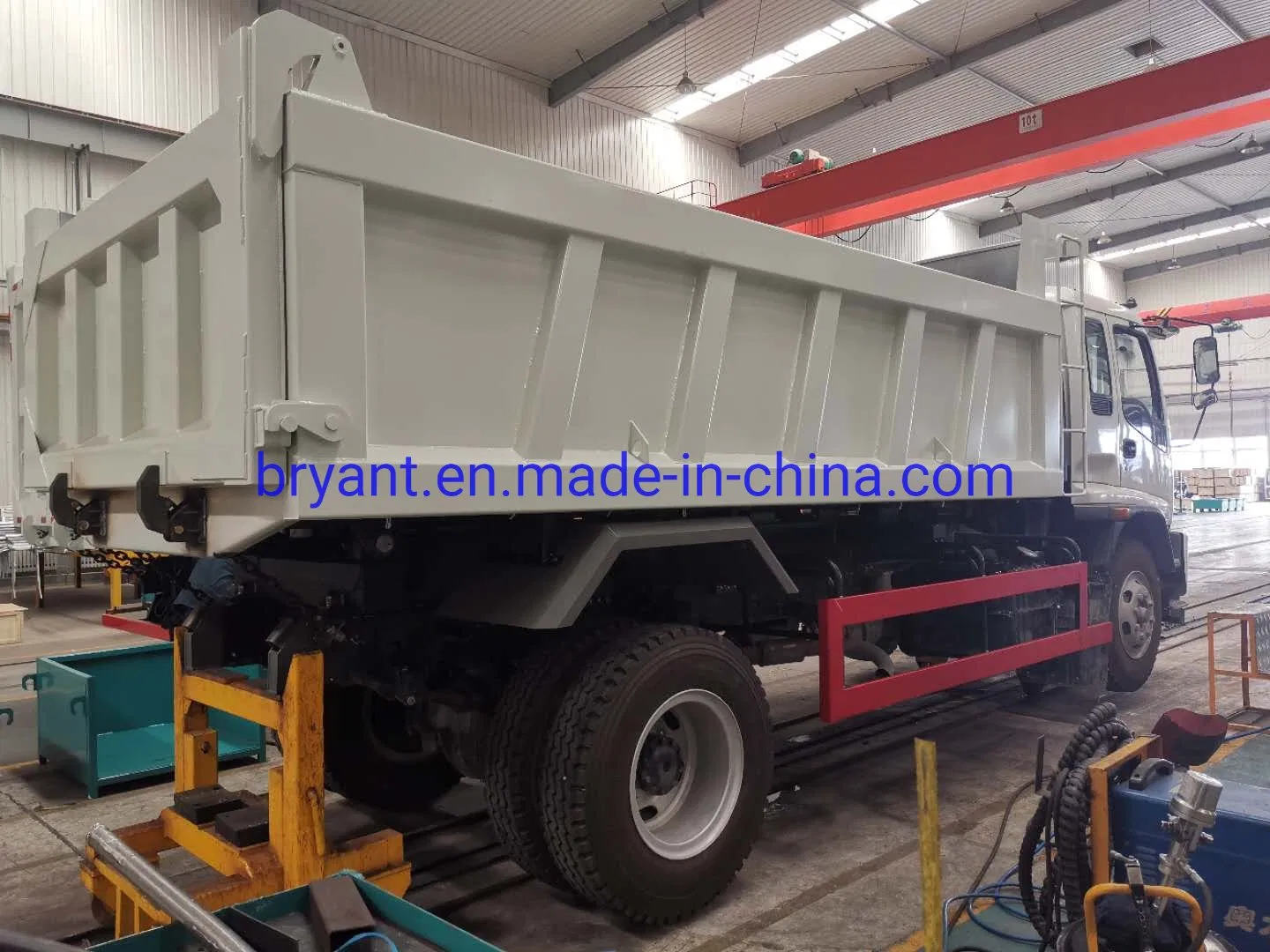

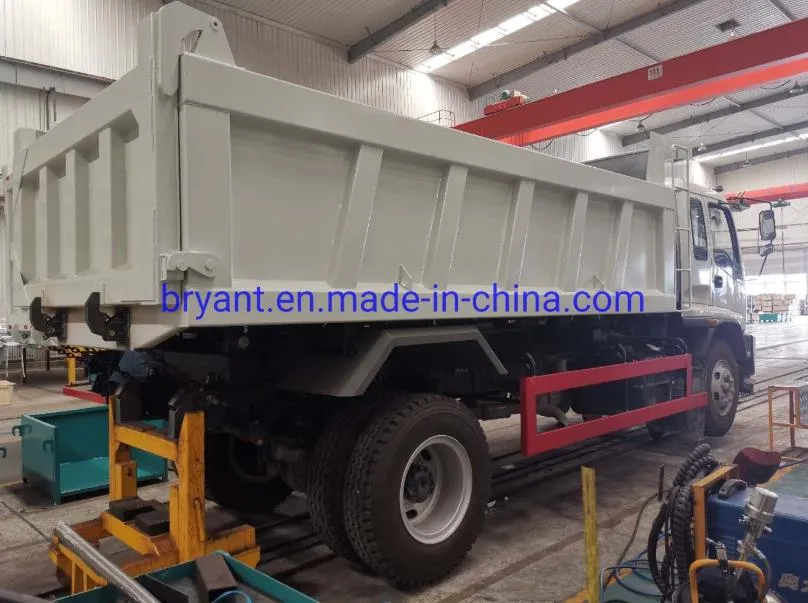

Dump Box	Size & Volume	4500x2300x1000mm, 10CBM

❓

Frequently Asked Questions

What is the maximum loading capacity of the Isuzu FTR Dump Truck?

The Isuzu FTR Dump Truck has a maximum loading capacity of 10,000kg (10 Tons) with a 10 CBM dump box volume.

Is the China Isuzu FTR compatible with Japan Isuzu spare parts?

Yes, the China Isuzu FTR series is universal with the Japan Isuzu F series, making it totally compatible in terms of spare parts and after-sales service.

What engine powers this dump truck?

It is powered by the Isuzu 4HK1-TC50 engine, which is a 4-cylinder in-line diesel engine with turbo-charging and intercooling, providing 205HP.

What is the emission standard of the vehicle?

The truck meets the Euro 5 (Euro V) emission standard, ensuring better environmental performance.

What type of transmission and braking system is used?

It uses an ISUZU MLD-6Q manual transmission with 6 forward and 1 reverse speeds, and a dual-circuit air drum brake system for safety.
