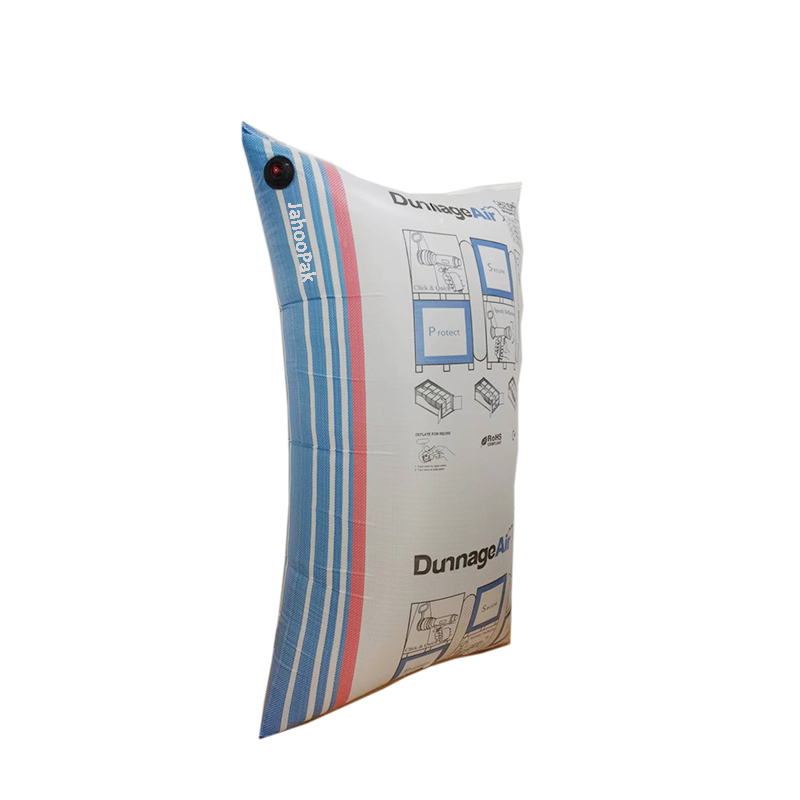

Durable 10psi Dunnage Bag for Refrigerated Container Use

📦 Basic Information

Model NO.	90*180cm
Color	White
Layer	Multi Layer
Usage	Air Dunnage Bag for Transportation
Working Pressure	2.9psi
Certificate	AAR/SGS
Inner Bag	PE
Application	Cargo Safety Protection
HS Code	3923290000

💡 Product Description

Customized Gap Filling Inflatable Plastic Dunnage Air Bag

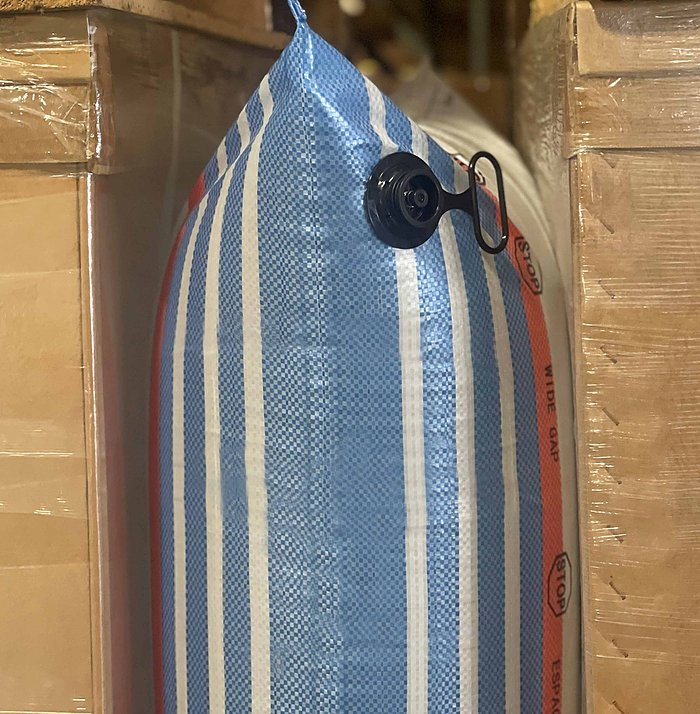

Air dunnage bags, when inflated and installed, reduce the risk of product damage by restricting load movement during transit. Additionally, air bags reposition the load and create a bulkhead, further preventing load shifts. Air bags consist of a clear plastic bladder that holds compressed air, and an outer shell made of extensible kraft paper or woven polypropylene material.

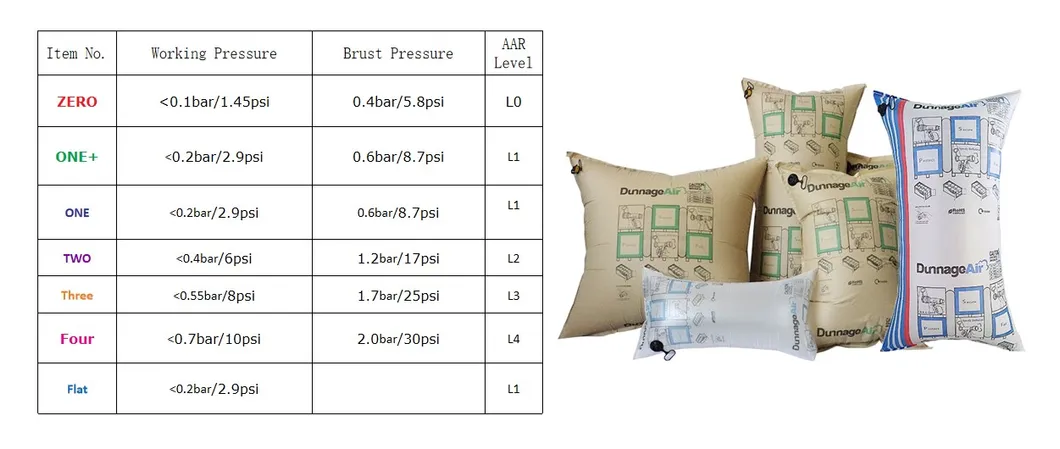

🛠️ Technical Specifications

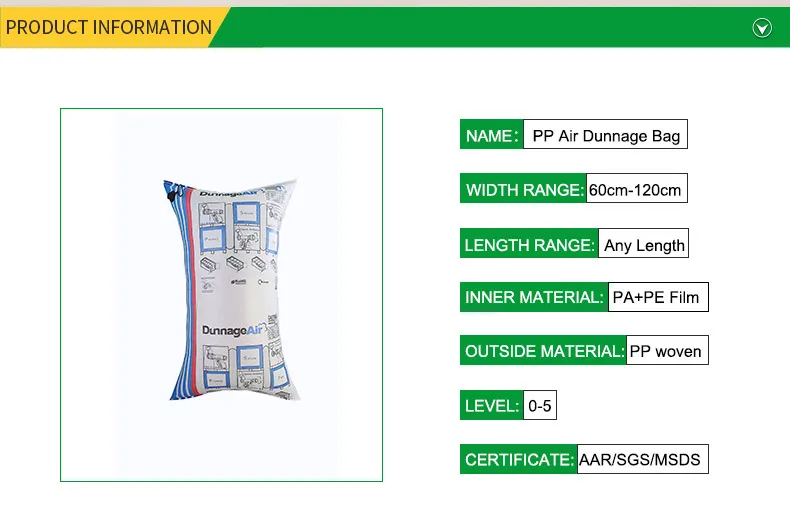

Outside Materials	100% PP Woven Fabric
Inner Materials	PA (Polyamide, Nylon) with high barrier performance
Work Pressure	0.2-0.8 Bar / 3-10 PSI
Bursting Inspection	According to AAR Standard

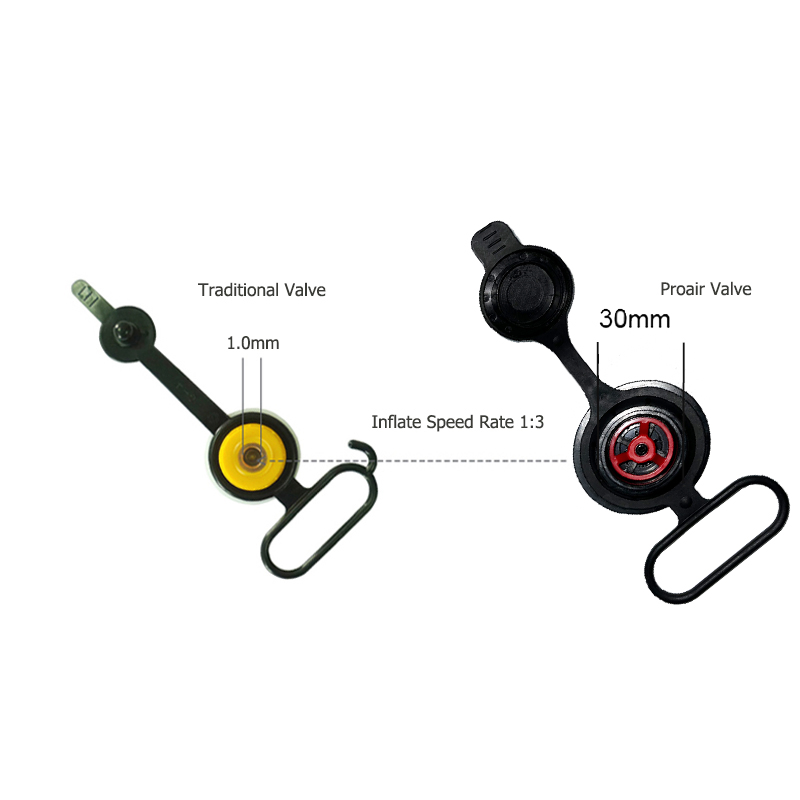

Valve Choice	Fast Inflate Valve or Traditional Valve

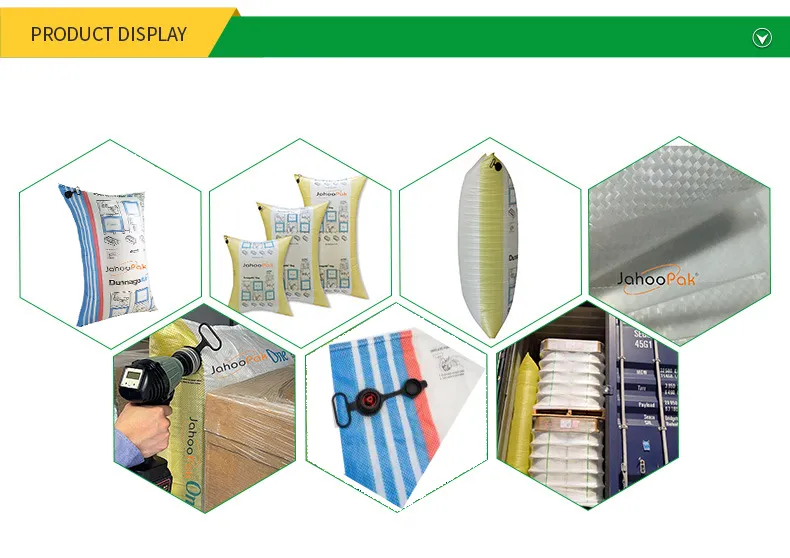

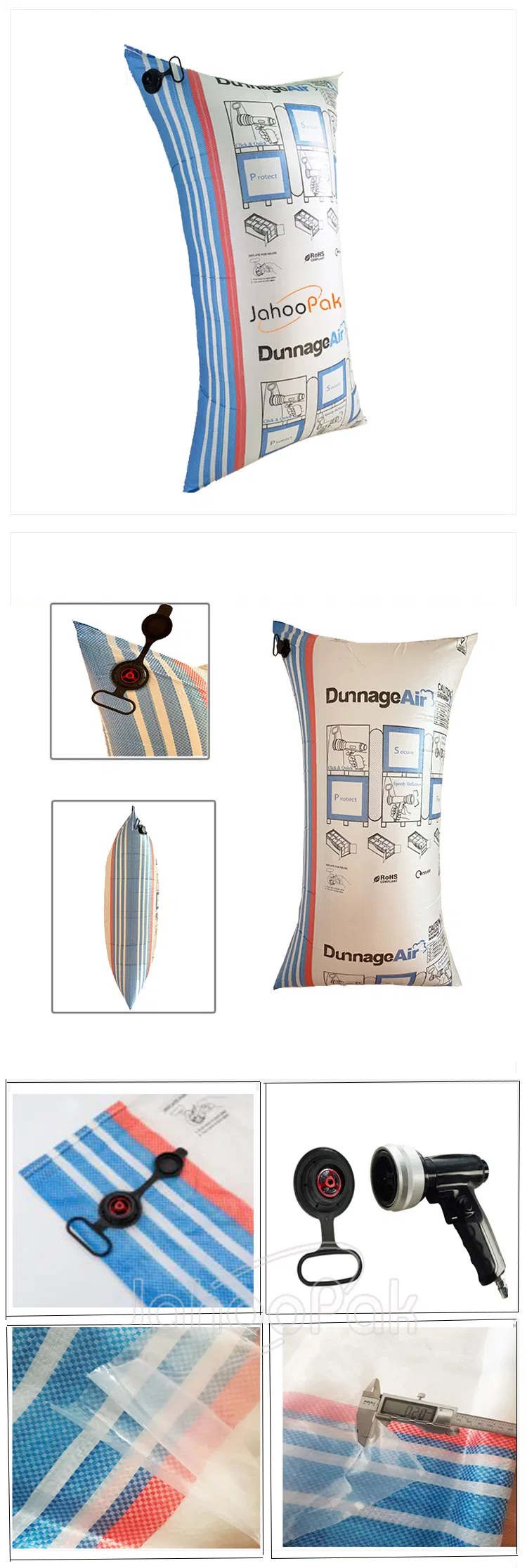

🔍 Detailed Photos

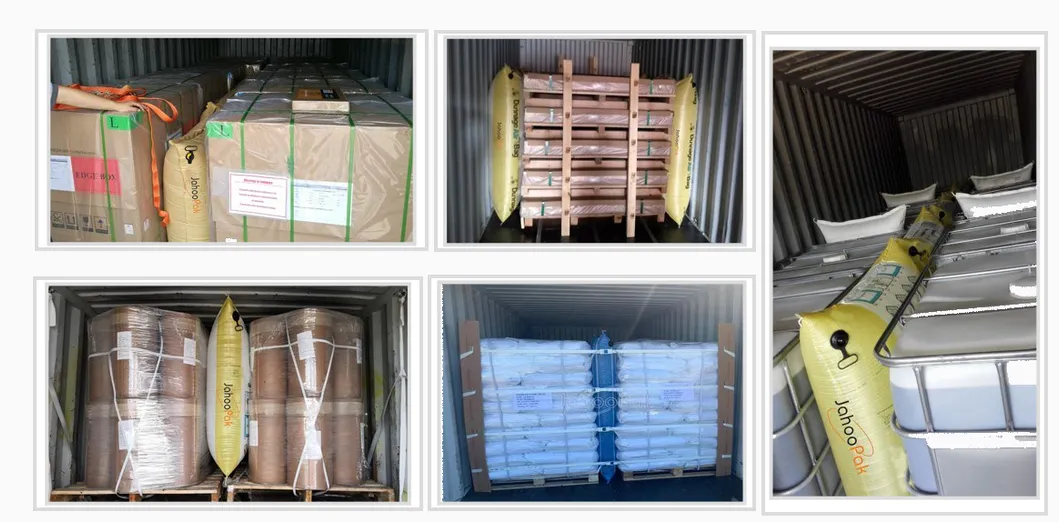

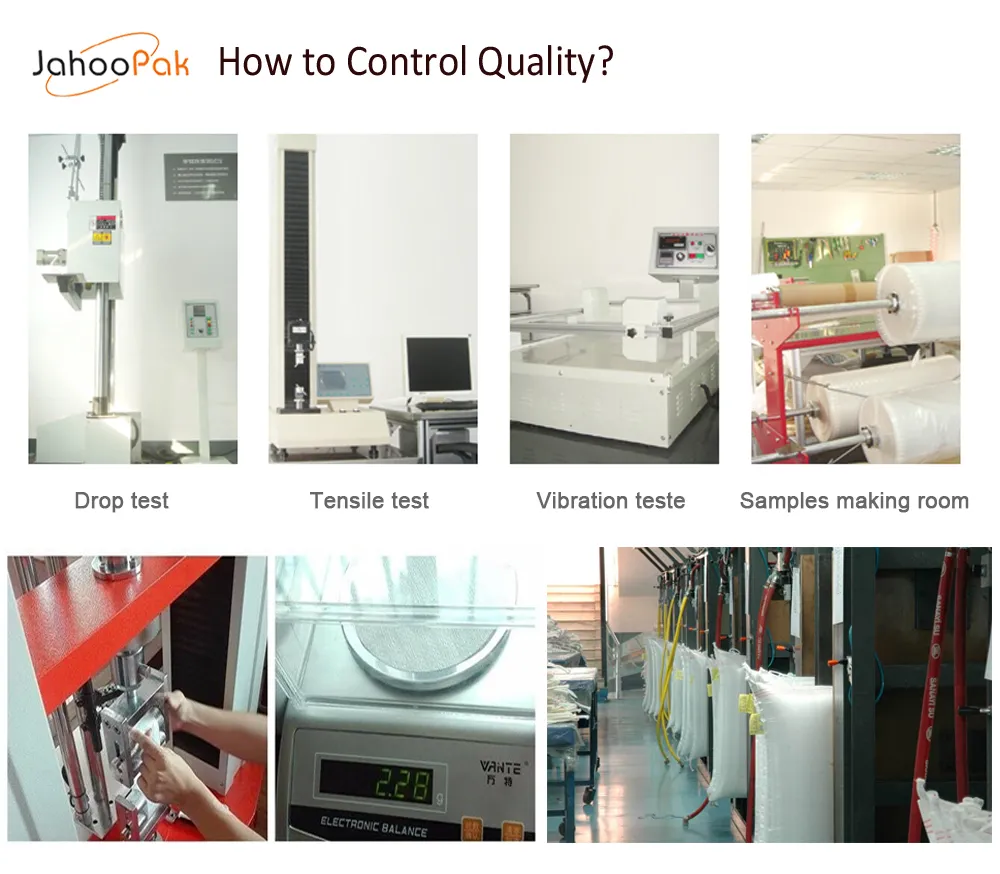

✅ Quality Control & Application

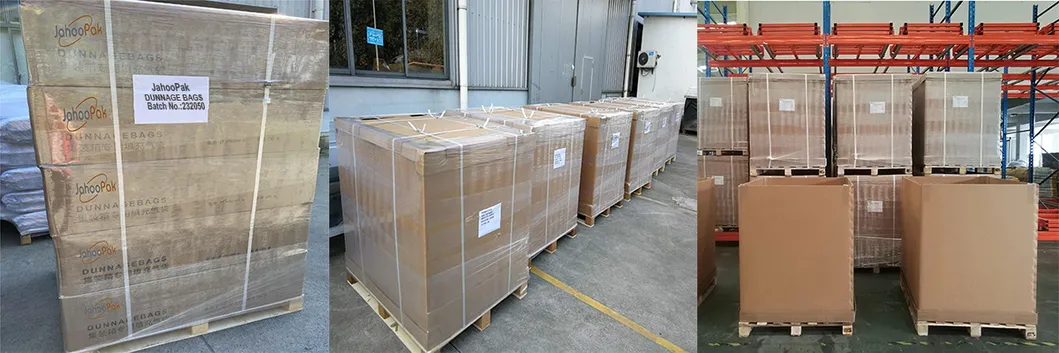

🚚 Packaging & Production

❓ Frequently Asked Questions

Q1: What is a dunnage air bag?

When inflated and installed, they reduce the risk of product damage by restricting load movement during transit. They can be used for shipping loads by truck, sea container, railcar, or ocean vessel.

Q2: What are the main functions?

They reduce product damage by restricting movement. Additionally, they reposition the load and create a bulkhead, further preventing shifts during transit.

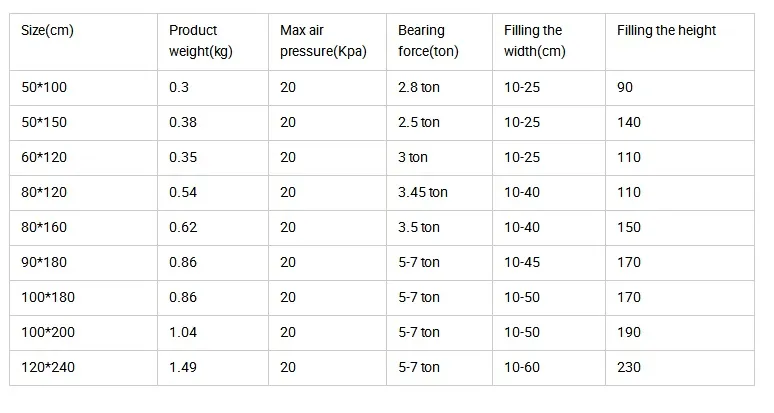

Q3: How do I choose the right size?

The correct size depends on factors like the weight of the product, the void size in the container, and the transportation mode. We recommend consulting a specialist for specific applications.

Q4: Are these bags reusable?

These bags are manufactured as disposable but can often be reused an average of 4 times depending on the handling. However, for rail shipments, AAR regulations prohibit reuse.

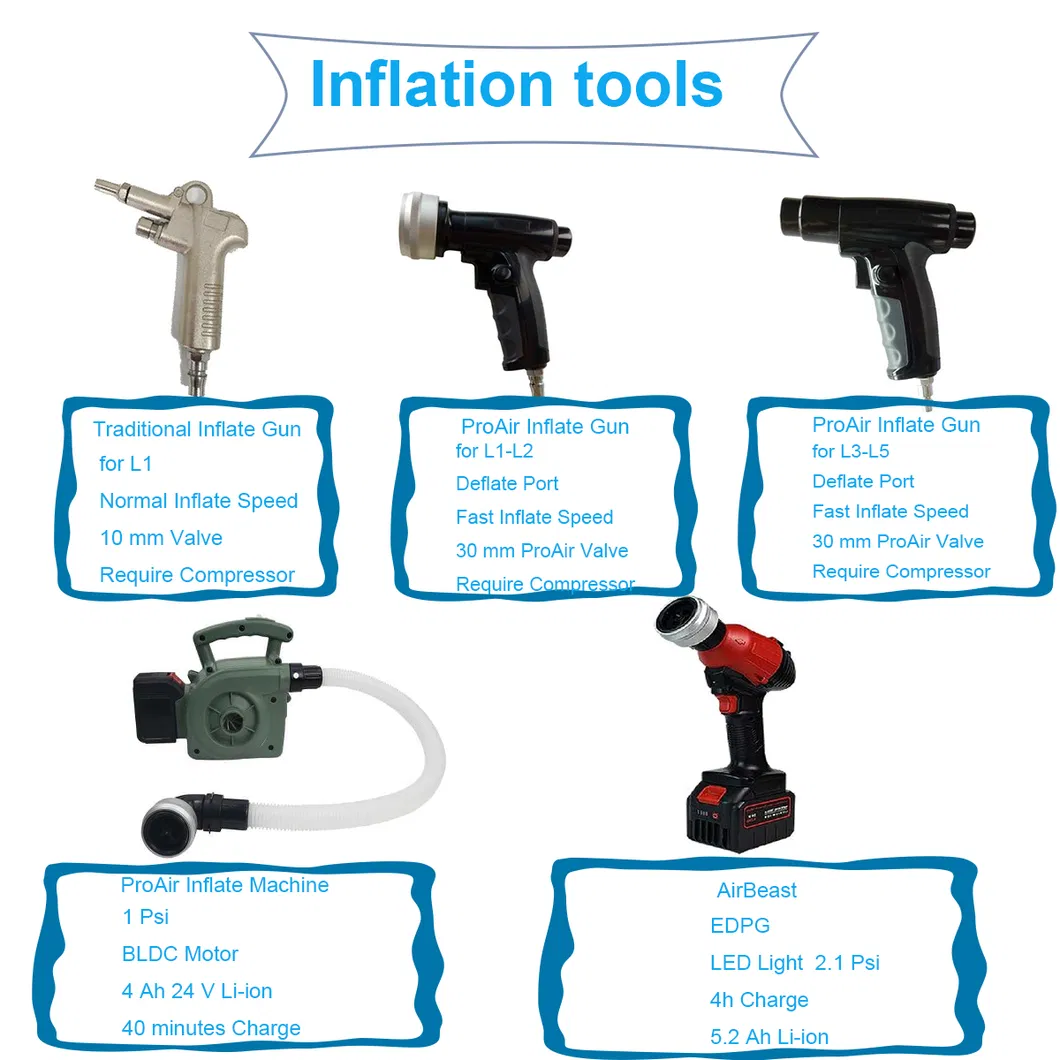

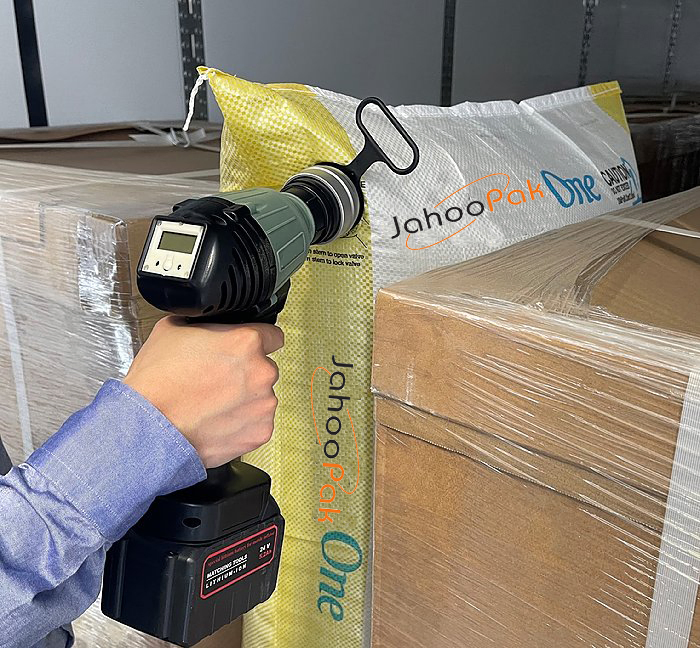

Q5: What equipment is needed for inflation?

You will need an air compressor or air line, a compatible inflation device, and a pressure measuring gauge to ensure safety.

Q6: Are the materials recyclable?

Yes, all materials used in the manufacture of these dunnage air bags are recyclable once the valve mechanism has been removed.
